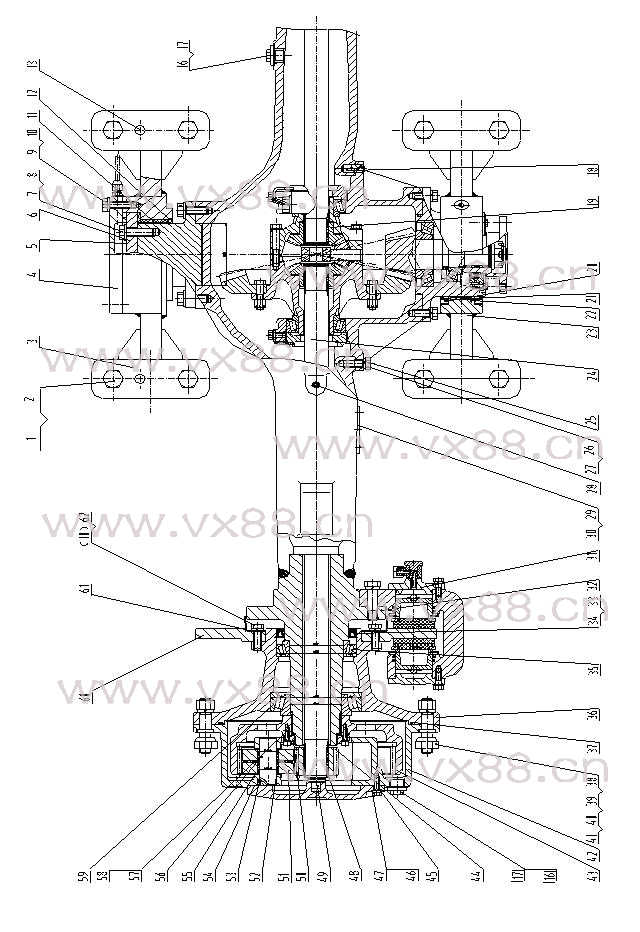

图文名称：后桥总成 01E0080
所属机型：CLG835
图文编号：168
物料编号：136
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
01B0167 |
GB5785-86 |
螺栓 |
Bolt |
M24×2×130-10.9-Zn.D |
1 |
|
2 |
03B0200 |
CB082428-3 |
锁紧螺母 |
Lock Nut |
M24×2 |
8 |
|
3 |
00D0425 |
|
后摆动支架 |
Rear pendulum bracket |
|
1 |
|
4 |
53A0073 |
ZL50G.3.1-1 |
盖 |
cover |
|
1 |
|
5 |
88A0157 |
ZL50F.3-6 |
止推垫片 |
Thrust gasket |
|
2 |
|
6 |
56A0155 |
|
压紧板 |
Cover |
|
1 |
|
7 |
00B0246 |
GB5783-86 |
螺栓 |
Bolt |
M16×55-10.9-Zn.D |
4 |
|
8 |
06B0177 |
5P8247 |
垫圈 |
Washer |
|
12 |
|
9 |
00B0057 |
GB5783-86 |
螺栓 |
Bolt |
M14×45-8.8-Zn.D |
6 |
|
10 |
06B0103 |
ZL50F.3-2 |
淬硬垫圈 |
Washer |
|
6 |
|
11 |
83A0113 |
|
衬套 |
bushing |
|
1 |
|
12 |
35C0047 |
ZL50F.3.2 |
密封圈 |
Seal |
|
1 |
|
13 |
00A0260 |
ZL50CⅢ.3-2 |
销 |
Pin |
|
2 |
|
14 |
61A0206 |
|
后支承轴 |
Rear support spindle |
|
1 |
|
15 |
00B0095 |
GB5783-86 |
螺栓 |
Bolt |
M16×45-10.9-Zn.D |
8 |
|
16 |
03B0212 |
|
螺塞 |
|
|
4 |
|
17 |
06B0055 |
JB982-77 |
垫圈 |
Washer |
27 |
4 |
|
18 |
60A0011 |
ZL50C.2-26 |
定位销 |
Pin |
|
1 |
|
19 |
41C0088 |
|
主传动总成 |
Primary reduction |
|
1 |
|
20 |
13B0147 |
GB9877.2-88 |
密封圈 |
Seal |
|
2 |
|
21 |
83A0108 |
|
衬套 |
Bushing |
|
1 |
|
22 |
07B0055 |
|
挡圈 |
Snap ring |
|
1 |
|
23 |
00D0424 |
|
前摆动支架 |
Front pendulum bracket |
|
1 |
|
24 |
62A0058 |
|
半轴 |
Axle shaft |
|
2 |
|
25 |
81A0076 |
|
垫片 |
Gasket |
|
1 |
|
26 |
00B0025 |
GB5783-86 |
螺栓 |
Bolt |
M14×35-8.8-Zn.D |
12 |
|
27 |
06B0013 |
GB93-87 |
垫圈14 |
Wahser 14 |
14 |
52 |
|
28 |
03B0406 |
Q9001 |
通气塞 |
Breather |
|
1 |
|
29 |
74A0307 |
|
桥铭牌 |
Nameplate |
|
1 |
|
30 |
09B0002 |
GB827-86 |
铆钉 |
rivet |
2×5 |
4 |
|
31 |
45C0004 |
ZL50C.2.2 |
夹钳总成 |
Torque plate assembly |
|
2 |
|
32 |
24D0028 |
|
桥壳体轮边支承 |
Axle Housing support |
|
1 |
|
33 |
13B0170 |
GB9877.1-88 |
密封圈 |
Seal |
FB120×150×12D |
2 |
|
34 |
07B0066 |
GB893.1-86 |
挡圈 |
Snap ring |
150 |
2 |
|
35 |
23B0046 |
GB/T297-1994 |
圆锥滚子轴承32020 |
Tapered roller bearing 32020 |
100×150×32 |
2 |
|
36 |
71A0090 |
|
轮毂 |
Wheel hub |
|
2 |
|
37 |
12B0365 |
GB3452.1-92 |
O形圈 |
O ring |
355×5.3 |
2 |
|
38 |
01B0362 |
|
轮辋螺栓 |
Rim bolt |
|
20 |
|
39 |
03B0201 |
120-3103018 |
轮辋螺母 |
Rim nut |
|
20 |
|
40 |
03B0150 |
GB6171-86 |
螺母 |
Nut |
M20×1.5-8-Zn.D |
20 |
|
41 |
06B0019 |
GB93-87 |
垫圈20 |
Washer 20 |
20 |
20 |
|
42 |
70A0074 |
|
行星轮架 |
Planner carrier |
|
2 |
|
43 |
41A0076 |
|
内齿轮 |
Ring gear |
|
2 |
|
44 |
41A0077 |
|
太阳轮 |
Sun gear |
|
2 |
|
45 |
53A0244 |
|
盖 |
Cover |
|
2 |
|
46 |
00B0019 |
GB5783-86 |
螺栓 |
Bolt |
M10×30-8.8-Zn.D |
12 |
|
47 |
06B0002 |
GB93-87 |
垫圈10 |
Washer 10 |
10 |
12 |
|
48 |
07B0049 |
GB894.1-86 |
挡圈 |
Snap ring |
45 |
2 |
|
49 |
61A0019 |
ZL50C.2-20 |
轴 |
Spin |
|
2 |
|
50 |
53A0250 |
|
圆螺母 |
Adjusting Nut |
|
2 |
|
51 |
41A0078 |
|
行星齿轮 |
Planetary gear |
|
6 |
|
52 |
20B0042 |
|
滚针 |
Needle roller |
|
168 |
|
53 |
20B0037 |
GB308-89 |
钢球 |
Steel boll |
|
6 |
|
54 |
81A0075 |
|
密封垫 |
Gasket |
|
2 |
|
55 |
56A0157 |
ZL20.2-12 |
垫片 |
Thrust plate |
|
12 |
|
56 |
60A0288 |
|
行星齿轮轴 |
Planner shaft |
|
6 |
|
57 |
04B0049 |
GB70-85 |
螺钉 |
Bolt |
|
4 |
|
58 |
06B0006 |
GB93-87 |
垫圈8 |
Washer |
8 |
4 |
|
59 |
23B0045 |
GB/T297-1994 |
圆锥滚子轴承32219 |
Tapered roller bearing 32219 |
|
2 |
|
60 |
52A0038 |
ZL40B.2-19 |
制动盘 |
Brake disc |
|
2 |
|
61 |
27A0052 |
ZL40B.2-20 |
防尘罩 |
Dust proof cap |
|
2 |
|
62 |
00B0273 |
GB5783-86 |
螺栓 |
Bolt |
M14×40-8.8-Zn.D |
40 |
|
63 |
41B0014 |
|
重负荷车轮齿轮油 |
Gear oil |
|
8 | |
|
|
|
|
| |
|
|
|
|
