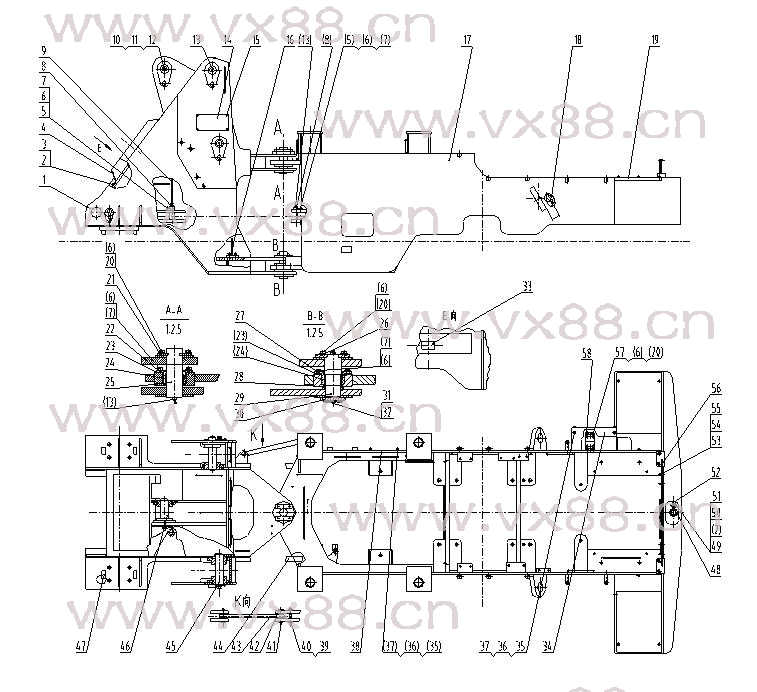

图文名称：车架 30E0050
所属机型：CLG835
图文编号：178
物料编号：147
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part NO. |
原零件号
Ref.Part NO. |
名称
Nomenclature |
数量
Q’ty |
|
1 |
30D0111 |
|
前车架 |
Frame |
1 |
|
2 |
06B0002 |
GB93-87 |
垫圈10 |
Washer |
7 |
|
3 |
00B0005 |
GB5783-86 |
螺栓M10×20-8.8-Zn.D |
Bolt |
6 |
|
4 |
43D0051 |
ZL30.8.2 |
前罩 |
Cover |
1 |
|
5 |
14A0126 |
ZL40B.8-2 |
卡板 |
Plate |
4 |
|
6 |
06B0008 |
GB93-87 |
垫圈12 |
Washer |
44 |
|
7 |
00B0011 |
GB5783-86 |
螺栓12×25-8.8-Zn.D |
Bolt |
28 |
|
8 |
60A0068 |
ZL40B.8-6 |
后转向销 |
Pin |
4 |
|
9 |
00C0147 |
|
黄油管路 |
Tube |
1 |
|
10 |
06B0019 |
GB93-87 |
垫圈20 |
Washer |
5 |
|
11 |
00B0055 |
GB5783-86 |
螺栓M20×40-8.8-Zn.D |
Bolt |
5 |
|
12 |
06B0016 |
GB97.1-85 |
垫圈20-140HV-Zn.D |
Washer |
5 |
|
13 |
10B0015 |
GB1153-89 |
油杯45°10×1 |
Fitting |
9 |
|
14 |
74A0002 |
ZL50C.8-27 |
警告牌 |
Brand |
2 |
|
15 |
09B0009 |
GB827-86 |
铆钉3X12 |
Rivet |
8 |
|
16 |
02D0212 |
|
中间支撑座 |
Supporting |
1 |
|
17 |
30D0096 |
|
后车架 |
Frame |
1 |
|
18 |
74A0083 |
06N4805 |
起吊指示牌 |
Brand |
4 |
|
19 |
34C0152 |
|
电瓶箱附件 |
Box |
1 |
|
20 |
00B0017 |
GB5783-86 |
螺栓M12×30-8.8-Zn.D |
Bolt |
16 |
|
21 |
14A0161 |
ZL40B.8-27 |
档板 |
Plate |
2 |
|
22 |
53A0057 |
ZL40B.8-26 |
轴承盖 |
cover |
1 |
|
23 |
57A0053 |
ZL40B.8-20 |
调整垫片 |
Washer |
2 |
|
24 |
25B0004 |
GB304.5-81 |
关节轴承GE60ES |
Bearing |
2 |
|
25 |
60A0186 |
ZL30.8-1 |
上铰接销轴 |
Pin |
1 |
|
26 |
14A0152 |
ZL40B.8-17 |
压板 |
Plate |
2 |
|
27 |
53A0056 |
ZL40B.8-19 |
轴承盖 |
Cover |
1 |
|
28 |
56A0060 |
ZL40B.8-21 |
垫圈 |
Washer |
1 |
|
29 |
60A0078 |
ZL40B.8-22A |
下铰接销轴 |
Pin |
1 |
|
30 |
56A0061 |
ZL40B.8-24A |
垫板 |
Plate |
1 |
|
31 |
06B0013 |
GB93-87 |
垫圈14 |
Washer |
3 |
|
32 |
00B0120 |
GB5786-86 |
螺栓M14×1.5×30-8.8-Zn.D |
Bolt |
3 |
|
33 |
74A0003 |
ZL50C.8-30 |
安全标牌 |
Brand |
1 |
|
34 |
21A0914 |
|
盖板 |
Plate |
1 |
|
35 |
01B0075 |
GB5783-86 |
螺栓M8×20-8.8-Zn.D |
Bolt |
8 |
|
36 |
06B0005 |
GB97.1-85 |
垫圈8-140HV-Zn.D |
Washer |
8 |
|
37 |
06B0006 |
GB93-87 |
垫圈8 |
Washer |
8 |
|
38 |
10A0605 |
|
封板 |
Plate |
1 |
|
39 |
60A0178 |
ZL20.8-22 |
插销 |
Pin |
1 |
|
40 |
08B0005 |
GB91-86 |
销4×25 |
Pin |
1 |
|
41 |
60A0160 |
ZL20.8-23 |
销 |
Pin |
2 |
|
42 |
08B0017 |
GB91-86 |
销6.3×60 |
Pin |
2 |
|
43 |
17A0243 |
ZL30.8-8 |
连杆 |
linker |
1 |
|
44 |
18A0210 |
ZL30.8-9 |
限位块 |
Plate |
2 |
|
45 |
11D0084 |
ZL30.8.6 |
动臂缸销 |
Pin |
4 |
|
46 |
11D0085 |
ZL30.8.9 |
转斗缸销 |
Pin |
1 |
|
47 |
17A0244 |
ZL30.8-10 |
限位块 |
Plate |
4 |
|
48 |
11D0083 |
ZL30.8.3 |
牵引销 |
Pin |
1 |
|
49 |
01B0034 |
GB5782-86 |
螺栓M10×40-8.8-Zn.D |
Bolt |
1 |
|
50 |
03B0053 |
GB6170-86 |
螺母M10-8-Zn.D |
Nut |
1 |
|
51 |
55A0028 |
ZL50C.8-23 |
管垫 |
Washer |
1 |
|
52 |
14A0027 |
ZL50C.8-9A |
限位板 |
Plate |
1 |
|
53 |
00B0335 |
GB5783-86 |
螺栓M5×20-8.8-Zn.D |
Bolt |
4 |
|
54 |
06B0017 |
GB93-87 |
垫圈5 |
Washer |
4 |
|
55 |
06B0066 |
GB97.1-85 |
垫圈5-140HV-Zn.D |
Washer |
4 |
|
56 |
82A0140 |
|
橡胶条 |
Stick |
1 |
|
57 |
06B0007 |
GB97.1-85 |
垫圈12-140HV-Zn.D |
Washer |
4 |
|
58 |
23A1175 |
|
提升支架 |
Frame |
1 | |
|
|
|
|
| |
|
|
|
|
