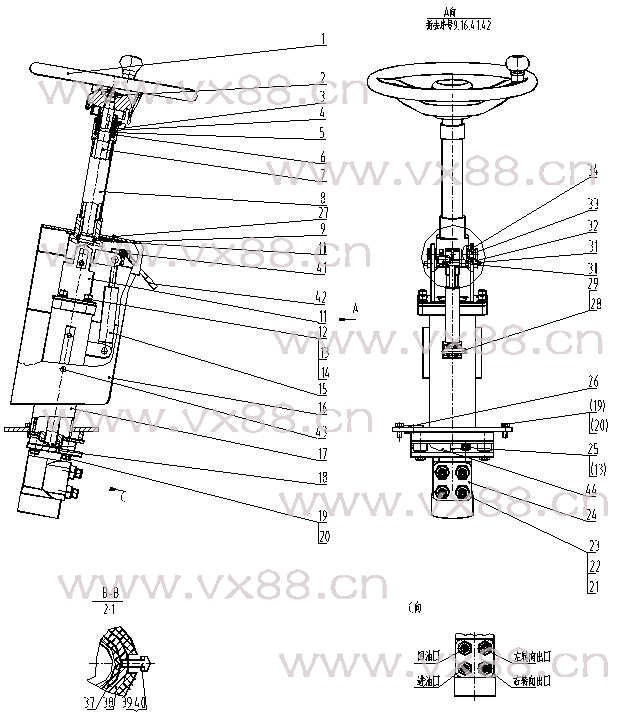

图文名称：方向机安装总成 44C0047
所属机型：CLG835
图文编号：183
物料编号：152
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Ref. Part No. |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
1 |
35C0087 |
LGFXP |
方向盘 Steering Wheel |
|
1 |
|
2 |
00A0255 |
ZL20.9.1-5 |
触头 Contact finger |
|
1 |
|
3 |
56A0106 |
|
卡环 Retaining ring |
|
1 |
|
4 |
76A0040 |
|
挡圈 Retaining ring |
|
2 |
|
5 |
56A0105 |
|
垫圈 Washer |
|
1 |
|
6 |
21B0012 |
GB276-82 |
向心球轴承 Ball Bearing |
1000905 |
1 |
|
7 |
44C0023 |
|
转向轴 Divert axes |
|
1 |
|
8 |
10D0329 |
|
套管 Pipe |
|
1 |
|
9 |
84A0099 |
|
罩板 Plate |
|
1 |
|
10 |
21B0020 |
GB276-82 |
向心球轴承 Ball Bearing |
1000806 |
1 |
|
11 |
02D0167 |
|
支承座 Bearer |
|
1 |
|
12 |
04B0022 |
GB70-85 |
螺钉 Screw |
M10×25-8.8- |
4 |
|
13 |
06B0002 |
GB93-87 |
垫圈 Washer |
10 |
8 |
|
14 |
06B0033 |
GB97.1-85 |
垫圈 Washer |
10-140HV-Zn.D |
4 |
|
15 |
24C0038 |
|
调整机构 Adjustment |
|
1 |
|
16 |
84A0100 |
|
罩板 Plate |
|
1 |
|
17 |
02D0168 |
|
支座 Bearer |
|
1 |
|
18 |
02D0169 |
|
安装支座 Bearer |
|
1 |
|
19 |
00B0017 |
GB5783-86 |
螺栓 Bolt |
M12×30-8.8-Zn.D |
8 |
|
20 |
06B0008 |
GB93-87 |
垫圈 Washer |
12 |
8 |
|
21 |
00A0084 |
ZL50G.12-5 |
接头 Connector |
|
4 |
|
22 |
12B0121 |
GB1235-76 |
O形圈 “O”ring |
22×2.4 |
4 |
|
23 |
12B0090 |
GB3452.1-92 |
O形圈 “O”ring |
10.6×1.8 |
4 |
|
24 |
44C0048 |
BZZ1-800 |
转向器 Diverter |
|
1 |
|
25 |
00B0015 |
GB5783-86 |
螺栓 Bolt |
M10×25-8.8-Zn.D |
4 |
|
26 |
83A0060 |
|
橡胶圈 Rubber ring |
|
1 |
|
27 |
04B0005 |
GB818-85 |
螺钉 Screw |
M6×20-4.8-Zn.D |
2 |
|
28 |
08B0068 |
GB882-86 |
销轴 Pin |
10X50 |
1 |
|
29 |
08B0004 |
GB91-86 |
销 Cotter pin |
3.2×20 |
1 |
|
30 |
66A0015 |
|
销 Cotter pin |
|
2 |
|
31 |
00B0022 |
GB5783-86 |
螺栓 Bolt |
M6×16-8.8-Zn.D |
2 |
|
32 |
13A0218 |
|
板 Plate |
|
2 |
|
33 |
61A0132 |
|
销 Cotter pin |
|
2 |
|
34 |
55A0305 |
|
轴套 Bearing bush |
|
2 |
|
35 |
22A0146 |
|
板 Plate |
|
3 |
|
36 |
04B0170 |
GB70-85 |
螺钉 Screw |
M6X10-8.8-Zn.D |
6 |
|
37 |
80A0046 |
ZL40B.9.1-2 |
绝缘环 Insulated ring |
|
1 |
|
38 |
61A0061 |
ZL40B.9.1-3 |
铜环 Copper collar |
|
1 |
|
39 |
04B0063 |
GB67-85 |
螺钉 Screw |
M4×12-4.8-Zn.D |
1 |
|
40 |
06B0036 |
GB97.1-85 |
垫圈 Washer |
4-140HV-Zn.D |
1 |
|
41 |
08B0093 |
GB119-86 |
销 Cotter pin |
A3×40 |
1 |
|
42 |
73A0029 |
|
扳手 Adjustallebar |
|
1 |
|
43 |
04B0056 |
GB818-85 |
螺钉 Screw |
M6×12-8.8-Zn.D |
4 |
|
44 |
83A0123 |
|
橡胶圈 Rubber ring |
|
1 | |
|
|
|
|
| |
|
|
|
|
