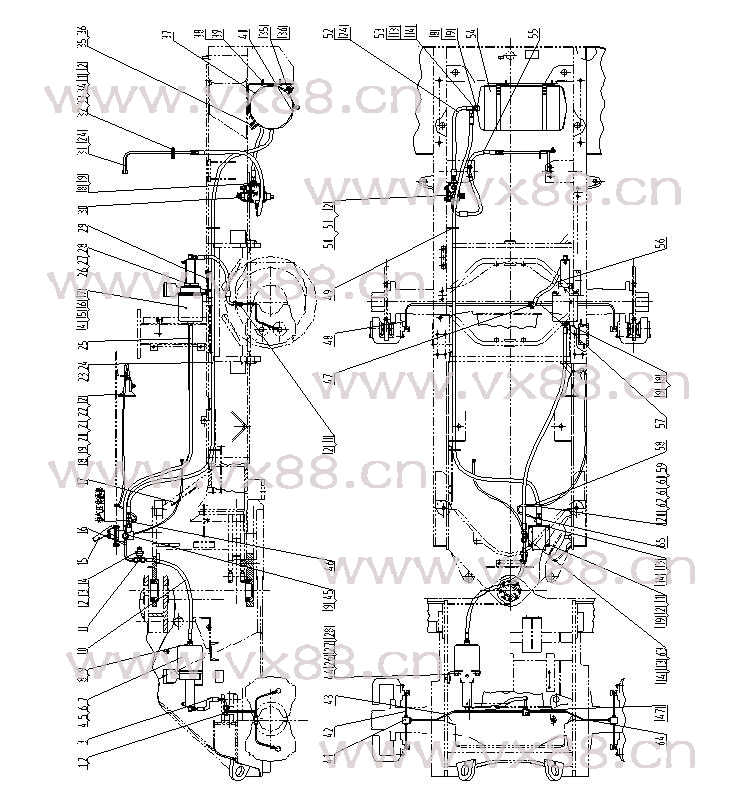

图文名称：行车制动系统（潍柴 ）20E0079
所属机型：CLG852
图文编号：299
物料编号：20E0079
|
 |
|
| 详细资料 |
|
序号
Sr.No. |
零件号
Part No. |
旧零件号
Old Part No. |
名称
Nomenclature |
规 格
Size |
数量
Qty |
|
1 |
00B0020 |
GB5783-86 |
螺栓 |
Bolt |
M8X30 |
7 |
|
2 |
06B0006 |
GB93-87 |
垫圈 |
Washer |
8 |
9 |
|
3 |
05C0371 |
|
φ8-1P高压软管 |
Hose |
|
1 |
|
4 |
13C0067 |
LG40A-3510001/
LG-ZL50/ZJ160D |
加力器总成 |
Cylinder Group |
|
2 |
|
5 |
12B0356 |
GB3452.1-92 |
O形圈 |
O-ring |
16X1.8 |
4 |
|
6 |
03A0067 |
ZJ160D-12 |
管接头 |
Connector |
|
2 |
|
7 |
01B0244 |
ZJ160D-13 |
管接头螺栓 |
Bolt |
|
2 |
|
8 |
00A0050 |
ZL50C.12-6 |
接头 |
Connector |
|
4 |
|
9 |
82A0028 |
ZL50C.12-2 |
垫 |
Washer |
|
5 |
|
10 |
04C0006 |
ZL50C.12.8A |
低压软管 |
Hose |
L1060 |
1 |
|
11 |
02A0008 |
ZL50C.12-9 |
三通接头 |
Connector |
|
1 |
|
12 |
34B0010 |
JN150-3720010 |
气制动灯开关 |
Pressure Switch |
|
1 |
|
13 |
03B0215 |
ZL50C.12A-20 |
锁紧螺母 |
Nut |
|
4 |
|
14 |
12B0242 |
GB1235-76 |
O形密封圈 |
O-ring |
25X2.4 |
4 |
|
15 |
13C0004 |
XM-60C |
气制动阀总成 |
Valve Assem |
|
1 |
|
16 |
02C0007 |
ZL50C.12.13 |
制动阀至制动灯开关
三通管 |
Tee - Joint |
|
|
|
17 |
03C0007 |
YD1100 |
尼龙管 |
Hose |
|
1 |
|
18 |
38B0013 |
QL11 |
蜗牛形气喇叭 |
Trump |
|
1 |
|
19 |
03B0021 |
GB6170-86 |
螺母 |
Nut |
M8 |
6 |
|
20 |
00A0091 |
ZL50CI.12-5 |
接头 |
Connector |
|
3 |
|
21 |
30A0201 |
|
低压软管 |
Hose |
|
1 |
|
22 |
01B0016 |
GB5783-86 |
螺栓 |
Bolt |
M8X40 |
1 |
|
23 |
04C0100 |
|
低压软管 |
Hose |
|
1 |
|
24 |
81A0009 |
ZL50C.12.3-2 |
垫 |
Washer |
|
7 |
|
25 |
04C0014 |
ZL50A.12.34A |
低压软管 |
Hose |
L1600 |
1 |
|
26 |
00B0038 |
GB5783-86 |
螺栓 |
Bolt |
M14X30 |
10 |
|
27 |
06B0013 |
GB93-87 |
垫圈14 |
Washer |
|
10 |
|
28 |
06B0009 |
GB97.1-85 |
垫圈 |
Washer |
14 |
10 |
|
29 |
00D0560 |
ZL50CVIII.12.1A |
后加力器支架 |
Bracket |
|
1 |
|
30 |
13C0026 |
SH380A |
组合阀 |
Valve Assem. |
|
1 |
|
31 |
10D0804 |
|
空压机至组合阀钢管 |
Hose |
|
1 |
|
32 |
22A0479 |
|
管夹安装板 |
Bracket |
|
1 |
|
序号
Sr.No. |
零件号
Part No. |
旧零件号
Old Part No. |
名称
Nomenclature |
规 格
Size |
数量
Qty |
|
33 |
88A0281 |
|
管夹 |
Clasp |
|
1 |
|
34 |
06B0005 |
GB97.1-85 |
垫圈 |
Washer |
8 |
1 |
|
35 |
06B0002 |
GB93-87 |
垫圈10 |
Washer |
|
4 |
|
36 |
00B0048 |
GB5783-86 |
螺栓 |
Bolt |
M10×45 |
4 |
|
37 |
00D0144 |
ZL40B.12.19 |
气罐内固定圈 |
Washer |
|
2 |
|
38 |
00B0031 |
GB5783-86 |
螺栓 |
Bolt |
M12X20 |
4 |
|
39 |
06B0008 |
GB93-87 |
垫圈12 |
Washer |
|
4 |
|
40 |
22A0020 |
ZL50C.12-14 |
空气罐外固定圈 |
Bracket |
|
2 |
|
41 |
02A0009 |
ZL50C.12-11A |
三通接头 |
Tee - Joint |
|
2 |
|
42 |
01C0004 |
ZL50C.12.11A |
三通至制动器管 |
Hose |
|
4 |
|
43 |
01C0003 |
ZL50C.12.10B |
前桥右端油管 |
Hose |
|
1 |
|
44 |
23A1866 |
|
前加力器安装板 |
Bracket |
|
1 |
|
45 |
03B0085 |
ZL50CI.12-8 |
堵头 |
Plug |
|
1 |
|
46 |
15D0225 |
|
组合接头 |
Connector |
|
1 |
|
47 |
16A1000 |
ZL50C.12A-21 |
三通接头 |
Connector |
|
2 |
|
48 |
01C0108 |
|
后桥右端油管 |
Hose |
|
1 |
|
49 |
37B0009 |
ZD150X3.5 |
扎带 |
Nylon tape |
|
5 |
|
50 |
22A0361 |
|
组合阀固定板 |
board |
|
1 |
|
51 |
00B0075 |
GB5783-86 |
螺栓 |
Bolt |
M8×20 |
2 |
|
52 |
04C0101 |
|
低压软管 |
Hose |
|
1 |
|
53 |
01A0021 |
ZL50C.12-1 |
弯管接头 |
Connector |
|
1 |
|
54 |
13C0003 |
8ZL50CI.12.1 |
空气罐 |
Air Reservoir |
|
1 |
|
55 |
04C0105 |
|
低压软管 |
Hose |
|
1 |
|
56 |
05C0151 |
ZL50C.12A.25A |
制动软管 |
Hose |
I-8-17.5 |
1 |
|
57 |
01C0107 |
|
后桥左端油管 |
Hose |
|
1 |
|
58 |
15B0067 |
ZBT32005.1-88 |
双钢丝式环箍 |
hoop |
|
4 |
|
59 |
55A0138 |
ZL50CI.12-6 |
垫块 |
Washer |
|
2 |
|
60 |
00B0065 |
GB5783-86 |
螺栓 |
Bolt |
M6X35 |
2 |
|
61 |
06B0003 |
GB93-87 |
垫圈6 |
Washer |
|
2 |
|
62 |
13C0021 |
EQ140 |
气喇叭开关 |
Trump switch |
|
1 |
|
63 |
15D0008 |
ZL50CI.12.11A |
四通接头 |
Joint |
|
1 |
|
64 |
01C0007 |
ZL50C.12.23A |
前桥左端油管 |
Hose |
|
1 |
|
65 |
30A0202 |
GB5783-86 |
低压软管 |
Hose |
|
1 | |
|
|
|
|
| |
|
|
|
|
