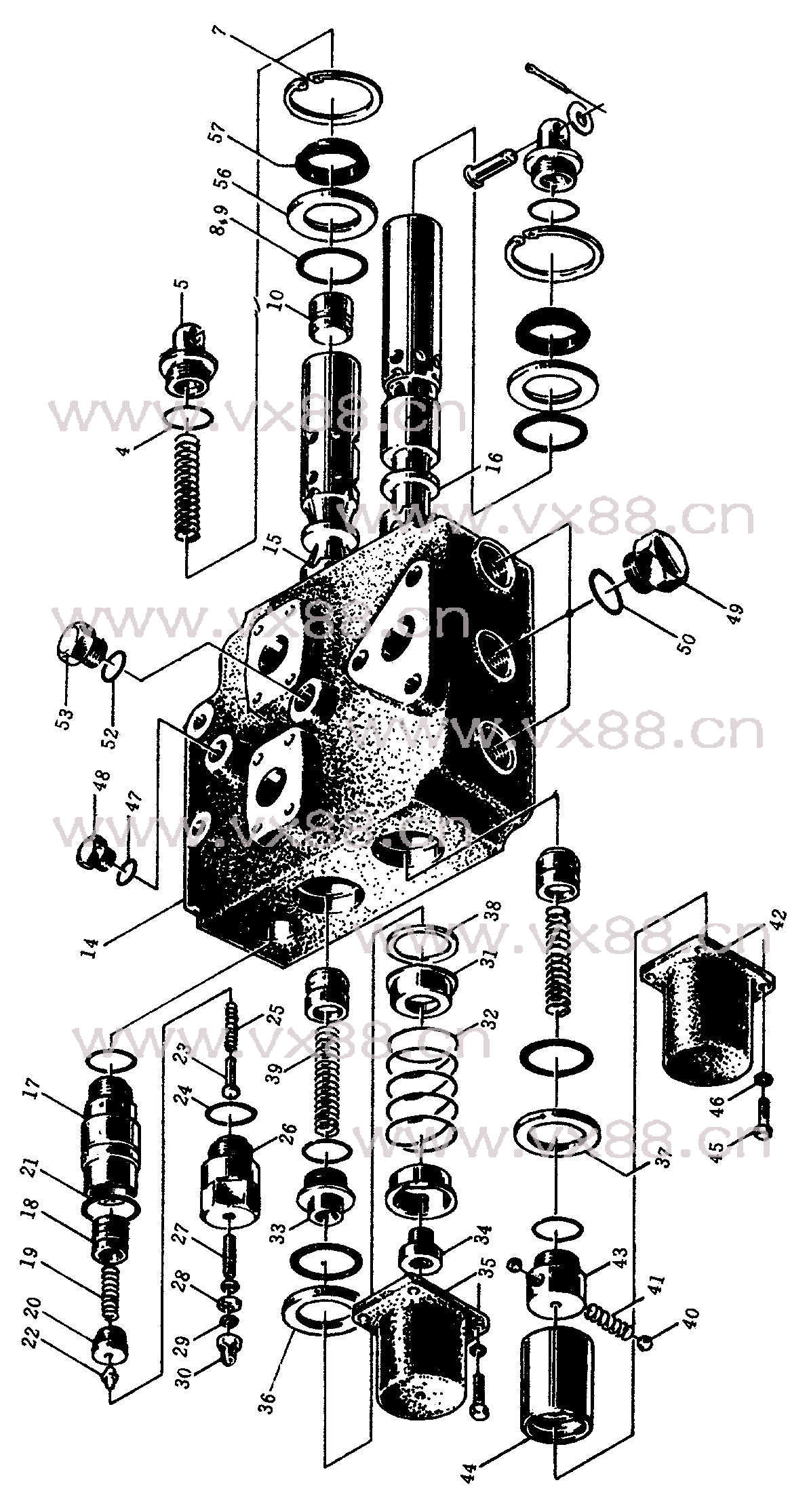

图文名称：分配阀 12C0016
所属机型：CLG852
图文编号：309
物料编号：12C0016
|
 |
|
| 详细资料 |
|
|
序号
No. |
零件号
Part NO. |
原零件号
Old Part NO. |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
1 |
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|
4 |
12B0055 |
GB1235-76 |
O形密封圈 |
“O”Ring |
35×3.1 |
4 |
|
5 |
63A0010 |
FPF32-2 |
弹簧座 |
Spring Seat |
|
2 |
|
7 |
07B0019 |
GB893.1-86 |
挡圈 |
Snap Seat |
65 |
2 |
|
8 |
80A0038 |
FPF32-24 |
挡圈 |
Snap Seat |
|
4 |
|
9 |
12B0062 |
GB3452.1-82 |
O形密封圈 |
“O”Ring |
40×3.55 |
4 |
|
10 |
63A0011 |
FPF32-4 |
单向阀 |
Check Valve |
|
3 |
|
14 |
78A0014 |
FPF32-5 |
阀体 |
Valve Housing |
|
1 |
|
15 |
63A0012 |
FPF32-6 |
转斗滑阀 |
Tilt Spool |
|
1 |
|
16 |
63A0013 |
FPF32-7 |
动臂滑阀 |
Lift Spool |
|
1 |
|
17 |
15C0003 |
FPF32.1.1 |
主阀套 |
Sleeve |
|
1 |
|
18 |
65A0022 |
FPF32.1-10 |
主阀芯 |
Spool |
|
1 |
|
19 |
75A0035 |
FPF32.1-9 |
主阀弹簧 |
Spring |
|
1 |
|
20 |
63A0017 |
FPF32.1-8 |
导阀座 |
Seat |
|
1 |
|
21 |
12B0057 |
GB3452.1-82 |
O形密封圈 |
“O”Ring |
37.5×3.55 |
1 |
|
22 |
65A0021 |
FPF32.1-7 |
导阀 |
Relief Valve |
|
1 |
|
23 |
60A0053 |
FPF32.1-6 |
弹簧座 |
Spring Seat |
|
1 |
|
24 |
12B0269 |
GB3452.1-82 |
O形密封圈 |
“O”Ring |
30×2.65 |
2 |
|
25 |
75A0034 |
FPF32.1-5 |
导阀弹簧 |
Spring |
|
1 |
|
26 |
78A0015 |
FPF32.1-4 |
导阀体 |
Cap |
|
1 |
|
27 |
04B0080 |
GB73-85 |
开槽平端紧定螺钉 |
Screw |
M10×35 |
1 |
|
28 |
03B0151 |
GB6172-86 |
螺母 |
Nut |
M10 |
1 |
|
29 |
57A0039 |
FPF32.1-2 |
垫片 |
Washer |
|
2 |
|
30 |
03B0084 |
FPF32.1-1 |
锁紧螺母 |
Lock Nut |
|
1 |
|
序号
No. |
零件号
Part NO. |
原零件号
Old Part NO. |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
31 |
53A0045 |
FPF32-8 |
弹簧压座 |
Spring Retainer |
|
2 |
|
32 |
75A0031 |
FPF32-9 |
复位弹簧 |
Return Spring |
|
1 |
|
33 |
63A0014 |
FPF32-10 |
弹簧座 |
Spring Seat |
|
1 |
|
34 |
63A0015 |
FPF32-11 |
定位座 |
Seat |
|
1 |
|
35 |
72A0031 |
FPF32-12 |
转斗回位套 |
Tilt Return
Sleeve |
|
1 |
|
36 |
56A0052 |
FPF32-15 |
挡板 |
Pad |
|
2 |
|
38 |
57A0038 |
FPF32-14 |
垫圈 |
Washer |
|
1 |
|
39 |
75A0032 |
FPF32-13 |
单向阀弹簧 |
Spring |
|
3 |
|
40 |
20B0019 |
GB308-77 |
钢球 |
Ball |
Φ11 |
2 |
|
41 |
75A0033 |
FPF32-16 |
弹簧 |
Spring |
|
1 |
|
42 |
72A0032 |
FPF32-17 |
动臂回位套 |
Lift Return
Sleeve |
|
1 |
|
43 |
63A0016 |
FPF32-18 |
弹簧座 |
Spring Seat |
|
1 |
|
44 |
55A0088 |
FPF32-19 |
定位套 |
Sleeve |
|
1 |
|
45 |
00B0063 |
GB5783-86 |
螺栓 |
Bolt |
M8×25 |
8 |
|
46 |
00B0006 |
GB93-87 |
垫圈 |
Lock Washer |
8 |
8 |
|
47 |
12B0017 |
GB1235-76 |
O形密形圈 |
“O”Ring |
16×2.4 |
1 |
|
48 |
03B0080 |
FPF32-20 |
螺塞 |
Plug |
|
1 |
|
49 |
03B0081 |
FPF32-21 |
螺塞 |
Plug |
|
3 |
|
50 |
12B0144 |
GB1235-76 |
O形密封圈 |
“O”Ring |
32×3.1 |
3 |
|
52 |
12B0121 |
GB1235-76 |
O形密封圈 |
“O“Ring |
22×2.4 |
1 |
|
53 |
03B0082 |
FPF32-22 |
螺塞 |
Plug |
|
1 |
|
56 |
55A0087 |
FPF32-3 |
套 |
Bushing |
|
2 |
|
57 |
13B0010 |
Q/ZB336-77 |
防尘圈 |
Wiper Seal |
40 |
2 | |
|
|
|
|
| |
|
|
|
|
