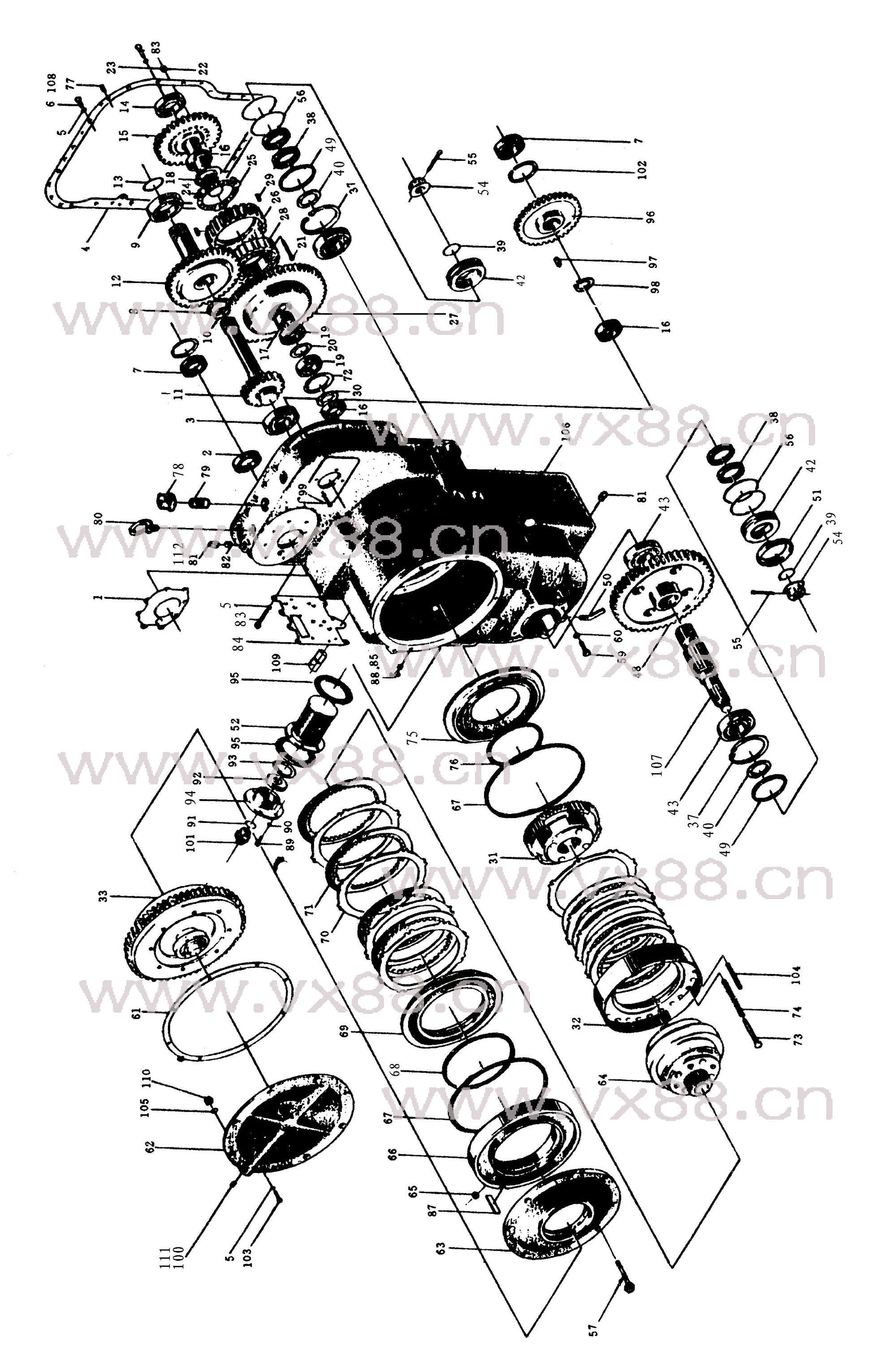

图文名称：变速箱(BS305)42C0035
所属机型：CLG852
图文编号：327
物料编号：42C0035
|
 |
|
| 详细资料 |
|
序号
Sr.No |
零件号
Part No |
旧零件号
Old Part No |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
1 |
80A0013 |
BS305-1 |
密封垫片 |
Gasket |
|
1 |
|
2 |
21B0005 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6012 |
1 |
|
3 |
21B0006 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6311 |
2 |
|
4 |
80A0014 |
BS305-2 |
密封圈 |
Gasket |
|
1 |
|
5 |
06B0002 |
GB93-87 |
垫圈 |
Lock Washer |
10 |
58 |
|
6 |
00B0002 |
GB5783-86 |
螺栓 |
Bolt |
M10X358 |
26 |
|
7 |
21B0023 |
NSK6210N |
球轴承 |
Ball Bearing |
50×90×20 |
3 |
|
8 |
26B0002 |
GB301-84 |
推力球轴承 |
Ball Bearing |
8111 |
1 |
|
9 |
21B0007 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6016 |
1 |
|
10 |
80A0015 |
BS305-4 |
油封环 |
Sear Ring |
|
1 |
|
11 |
40A0004 |
BS305-5 |
输入一级齿轮 |
Ist.Turbine
Driving Gear |
|
1 |
|
12 |
40A0005 |
BS305-6 |
输入二级齿轮 |
Sec.Turbine
Driving Gear |
|
1 |
|
13 |
80A0016 |
BS305-7 |
油封环 |
Seal Ring |
|
1 |
|
14 |
21B0011 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6211 |
1 |
|
15 |
44A0002 |
BS305-8 |
中间输入轴 |
Range Gear
Input Shaft |
|
1 |
|
16 |
21B0013 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6010 |
3 |
|
17 |
55A0058 |
BS305-9A |
隔离套 |
Spacer |
|
1 |
|
18 |
07B0023 |
GB893.1-86 |
挡圈 |
Snap Ring |
80 |
1 |
|
19 |
21B0001 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6210 |
2 |
|
20 |
55A0059 |
BS305-10 |
间隔套 |
Spacer |
|
1 |
|
21 |
61A0034 |
BS305-11 |
螺栓 |
Bolt |
|
20 |
|
22 |
03B0163 |
GB9457-88 |
螺母 |
Nut |
M10X1-8 |
20 |
|
23 |
08B0008 |
GB91-86 |
销 |
Cotter Pin |
2X20 |
20 |
|
24 |
75A0011 |
BS305.1-1 |
弹簧 |
Spring |
|
3 |
|
25 |
53A0031 |
BS305.1-2 |
压盖 |
Retaining Plate |
|
1 |
|
26 |
56A0034 |
BS305.1-3A |
隔离环 |
Snap Ring |
|
1 |
|
27 |
41A0016 |
BS305.1-4 |
外环齿轮 |
Ist.Turbine
Driven Gear |
|
1 |
|
28 |
47A0013 |
BS305.1-5 |
内环凸轮 |
Clutch Cam |
|
1 |
|
29 |
60A0044 |
BS305.1-6 |
滚柱 |
Roller |
|
1 |
|
30 |
55A0060 |
BS305-12 |
间隔套 |
Spacer |
|
|
|
31 |
|
|
倒档行星架总成 |
Reverse Rang
Planetary Carrier Ass’y |
|
|
|
32 |
55A0065 |
BS305.2-1 |
摩擦片隔离架 |
Clutch Anchor |
|
1 |
|
33 |
|
|
直接档总成 |
High Range
Gearing Ass’y |
|
|
|
序号
Sr.No |
零件号
Part No |
旧零件号
Old Part No |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
37 |
07B0009 |
GB893.1-86 |
挡圈 |
Snap Ring |
130 |
2 |
|
38 |
13B0003 |
GB9877.1-88 |
油封 |
Seal |
FB70X95X12D |
4 |
|
39 |
12B0033 |
GB3452.1-82 |
O形圈 |
“O”Ring |
42.5X5.3 |
2 |
|
40 |
55A0061 |
BS305-21 |
隔套 |
Spacer |
|
2 |
|
42 |
80A0017 |
BS305-23 |
油封座 |
Seal Seat |
|
2 |
|
43 |
21B0008 |
GB/T276-94 |
球轴承 |
Ball Bearing |
6312 |
3 |
|
48 |
41A0044 |
|
输出轴齿轮 |
Output Shaft Gear |
|
1 |
|
49 |
56A0027 |
BS305-28 |
垫圈 |
Washer |
|
2 |
|
50 |
01A0014 |
BS305-29 |
泄油管 |
Drain Tube |
|
1 |
|
51 |
53A0027 |
BS305-30 |
挡油盖 |
Oil Retainer |
|
1 |
|
52 |
53C0027 |
YLX-57 |
滤油器 |
Strainer |
|
1 |
|
54 |
03B0050 |
BS305-31 |
带槽螺母 |
Gasket |
|
2 |
|
55 |
08B0032 |
GB91-86 |
销 |
Cotter Pin |
6.3X60 |
2 |
|
56 |
12B0034 |
GB3452.1-82 |
O形圈 |
“O”Ring |
122X3.55 |
4 |
|
57 |
00B0121 |
GB5786-86 |
螺栓 |
Bolt |
M12X1.5X35 |
8 |
|
58 |
06B0008 |
GB93-87 |
垫圈 |
Lock Washer |
12 |
20 |
|
59 |
00B0025 |
GB5783-86 |
螺栓 |
Bolt |
M14X35 |
4 |
|
60 |
06B0013 |
GB93-87 |
垫圈 |
Lock Washer |
14 |
4 |
|
61 |
80A0098 |
|
密封垫 |
Gasket |
|
1 |
|
|
62 |
53A0171 |
|
端盖 |
End Cover |
|
1 |
|
|
63 |
53A0029 |
BS305-35 |
中盖 |
Medium Cover |
|
1 |
|
|
64 |
|
|
一档行星总成 |
Low Range Planetary
Carrier Ass’y |
|
|
|
|
65 |
80A0023 |
BS305.9-1 |
油封 |
Seal |
13X20X5.5 |
1 |
|
|
66 |
39A0006 |
BS305.9-2 |
缸体 |
Piston Housing |
|
1 |
|
|
67 |
80A0024 |
BS305.11-1 |
外密封圈 |
Outer Seal Ring |
|
1 |
|
|
68 |
80A0025 |
BS305.11-3 |
内密封圈 |
Inner Seal Ring |
|
1 |
|
|
69 |
50A0004 |
BS305.11-2 |
活塞体 |
Piston |
|
1 |
|
|
70 |
56A0030 |
BS305-48 |
倒档一档从动片 |
Reverse & Low Range
Reaction Plate |
|
1 |
|
|
71 |
37C0002 |
BS305.12 |
倒档一档主动片总成 |
Reverse & Low Range
Reaction Plate Ass’y |
|
1 |
|
|
72 |
07B0011 |
GB893.1-86 |
挡圈 |
Snap Ring |
90 |
1 |
|
|
73 |
60A0036 |
BS305-53 |
弹簧销轴 |
Cuide Pin |
|
15 |
|
|
74 |
75A0009 |
BS305-54 |
弹簧 |
Spring |
|
15 |
|
|
75 |
50A0005 |
BS305.13-1 |
活塞体 |
Piston |
|
1 |
|
|
76 |
80A0026 |
BS305.13-2 |
内密封圈 |
Inner Seal Ring |
|
1 |
|
|
77 |
60A0037 |
BS305-55 |
圆柱销 |
Pin |
|
2 |
|
|
|
序号
Sr.No |
零件号
Part No |
旧零件号
Old Part No |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
78 |
42C0014 |
BS305.14 |
透气盖总成 |
Bleeding Cover Ass’y |
|
1 |
|
|
79 |
10D0023 |
BS305.15 |
透气管 |
Bleeding Tube |
|
1 |
|
|
80 |
04B0201 |
GB825-88 |
螺钉 |
Bolt |
M20 |
2 |
|
|
81 |
05A0008 |
ZL50C.3.3-24 |
堵头 |
Plug |
|
2 |
|
|
82 |
60A0038 |
BS305-57 |
圆柱堵塞 |
Cylindrical Plug |
|
1 |
|
|
83 |
00B0018 |
GB5782-86 |
螺栓 |
Bolt |
M10X70 |
13 |
|
|
84 |
82A0025 |
BS305-58 |
密封垫 |
Gasket |
|
1 |
|
|
85 |
12B0036 |
GB3452.1-82 |
O形圈 |
“O”Ring |
5.3X1.8 |
1 |
|
|
87 |
10A0065 |
BS305-60 |
固定板 |
Ancher Plate |
|
1 |
|
|
88 |
43B0006 |
2105型 |
放水塞 |
Bolt |
ZM14 |
2 |
|
|
89 |
00B0020 |
GB5783-86 |
螺栓 |
Bolt |
M8X30 |
6 |
|
|
90 |
06B0006 |
GB93-87 |
垫圈 |
Lock Washer |
8 |
10 |
|
|
91 |
12B0144 |
GB1235-76 |
O形圈 |
“O”Ring |
32X3.1 |
3 |
|
|
92 |
43B0003 |
|
磁铁 |
Mangnet |
φ69Xφ31X14 |
1 |
|
|
93 |
07B0012 |
GB893.1-86 |
挡圈 |
Snap Ring |
70 |
1 |
|
|
94 |
53A0030 |
BS305-61 |
压盖 |
Retaining Plate |
|
1 |
|
|
95 |
56A0032 |
BS305-62 |
垫片 |
Gasket |
|
2 |
|
|
96 |
41A0015 |
BS305-63 |
转向油泵驱动齿轮 |
Steering Pump
Driving Gear |
|
1 |
|
|
97 |
09B0007 |
GB1096-79 |
键 |
Key |
16X36 |
1 |
|
|
98 |
|
BS305-66 |
止动环 |
Sanp Ring |
|
|
|
|
99 |
04B0079 |
GB70-85 |
螺钉 |
Screw |
M10X25 |
4 |
|
|
100 |
03B0080 |
FPF32-20 |
螺塞 |
Plug |
|
1 |
|
|
101 |
03A0019 |
BB70-9 |
管接头 |
Connector |
|
3 |
|
|
102 |
07B0013 |
GB894.1-86 |
挡圈 |
Snap Ring |
58 |
1 |
|
|
103 |
00B0079 |
GB5783-86 |
螺栓 |
Bolt |
M10X30 |
10 |
|
|
104 |
60A0045 |
BS305.2-2 |
圆柱销 |
Pin |
|
8 |
|
|
105 |
12B0035 |
GB3452.1-82 |
O形圈 |
“O”Ring |
15X2.65 |
1 |
|
|
106 |
52C0013 |
|
箱体 |
Transmission Hosing |
|
1 |
|
|
107 |
62A0011 |
BS305-68 |
输出轴 |
Output Shaft |
|
1 |
|
|
108 |
01B0028 |
GB5782-86 |
螺栓 |
Bolt |
M10X70 |
5 |
|
|
109 |
60A0040 |
BS305-59 |
圆柱销 |
Pin |
|
1 |
|
|
110 |
55A0063 |
BS305-67 |
隔圈 |
Spacer |
|
1 |
|
|
111 |
12B0119 |
GB1235-76 |
O形圈 |
“O”Ring |
16X2.4 |
1 |
|
|
112 |
12B0143 |
GB1235-76 |
O形圈 |
“O”Ring |
30X3.1 |
2 |
| |
|
|
|
|
| |
|
|
|
|
