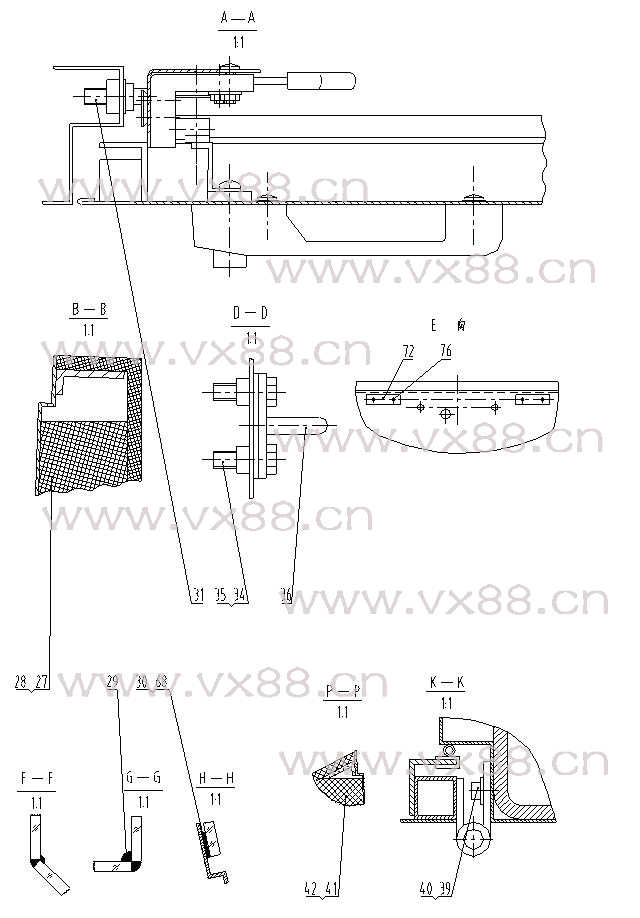

图文名称：驾驶室总成3 41E0006
所属机型：CLG862
图文编号：360
物料编号：41E0006
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
1 |
23D0093 |
|
驾驶室 |
Cap Assembly |
|
1 |
|
2 |
87A0024 |
|
前玻璃 |
Glass |
|
1 |
|
3 |
87A0026 |
|
右前侧玻璃 |
Glass |
|
1 |
|
4 |
87A0025 |
|
左前侧玻璃 |
Glass |
|
1 |
|
6 |
47C0108 |
|
控制箱总成 |
Control Box |
|
1 |
|
8 |
47C0063 |
|
左门 |
Door Group |
|
1 |
|
9 |
47C0064 |
|
右门 |
Door Group |
|
1 |
|
10 |
87A0027 |
|
右后侧玻璃 |
Glass |
|
1 |
|
11 |
87A0023 |
|
左后侧玻璃 |
Glass |
|
1 |
|
12 |
87A0022 |
|
后玻璃 |
Glass |
|
1 |
|
13 |
85A0117 |
|
顶内饰件 |
Garnishry |
|
1 |
|
14 |
35C0156 |
|
上减震器 |
Rubber Pad |
|
4 |
|
15 |
56A0209 |
|
垫圈 |
Washer |
|
4 |
|
16 |
01B0150 |
GB5782-86 |
螺栓 |
Bolt |
M30×120-8.8-Zn.D |
4 |
|
17 |
85A0112 |
|
前右立柱内饰件 |
Garnishry |
|
1 |
|
18 |
88A0119 |
|
顶隔热板 |
Insulator |
|
2 |
|
19 |
85A0093 |
|
左顶隔热板 |
Insulator |
|
1 |
|
20 |
85A0094 |
|
右顶隔热板 |
Insulator |
|
1 |
|
21 |
85A0113 |
|
后右立柱内饰件 |
Garnishry |
|
1 |
|
22 |
85A0114 |
|
后左立柱内饰件 |
Garnishry |
|
1 |
|
25 |
34C0146 |
|
后内饰件 |
Garnishry |
|
1 |
|
26 |
88A0114 |
|
后隔热板 |
Insulator |
|
1 |
|
27 |
88A0118 |
|
左侧隔热板 |
Insulator |
|
1 |
|
28 |
88A0117 |
|
右侧隔热板 |
Insulator |
|
1 |
|
29 |
85A0044 |
|
玻璃胶 |
Glue |
|
1 |
|
30 |
42B0005 |
|
西卡玻璃胶 |
Glue |
Sikaflex-255Extra |
1 |
|
31 |
88A0128 |
|
NBS502门锁锁扣 |
Lockpin |
|
2 |
|
34 |
00B0007 |
GB5783-86 |
螺栓 |
Bolt |
M8×16-8.8-Zn.D |
4 |
|
35 |
06B0005 |
GB97.1-85 |
垫圈 |
Washer |
8-140HV-Zn.D |
4 |
|
36 |
88A0164 |
|
NBS510定位锁锁扣 |
Lockpin |
|
2 |
|
39 |
00B0012 |
GB5783-86 |
螺栓 |
Bolt |
M10×25-8.8-Zn.D |
|
|
40 |
06B0001 |
GB97.1-85 |
垫圈 |
Washer |
10-140HV-Zn.D |
8 |
|
41 |
88A0116 |
|
左后隔热板 |
Insulator |
|
1 |
|
42 |
88A0115 |
|
右后隔热板 |
Insulator |
|
1 |
|
43 |
85A0046 |
|
衣钩 |
Clothes Hood |
|
1 |
|
44 |
04B0005 |
GB818-85 |
螺钉 |
Screw |
M6×20-4.8-Zn.D |
2 |
|
45 |
82A0131 |
|
地板胶 |
Rubber |
|
1 |
|
46 |
36D0079 |
|
后盖 |
Rear Cover |
|
1 |
|
47 |
06B0003 |
GB93-87 |
垫圈 |
Washer |
6 |
8 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Nomenclature |
规格
Size |
数量
Q’ty |
|
48 |
00B0010 |
|
螺栓 |
Bolt |
M6×20-8.8-Zn.D |
8 |
|
50 |
11A0505 |
|
制动阀安装板（2） |
Plate |
|
1 |
|
51 |
04B0259 |
GB846-85 |
螺钉 |
Screw |
ST3.5×16-C-H |
15 |
|
52 |
42B0004 |
|
西卡底涂剂 |
Glue |
Sika-Primer-206G+P |
1 |
|
53 |
47C0109 |
|
手垫架 |
Support |
|
1 |
|
54 |
47C0107 |
|
手垫架 |
Support |
|
1 |
|
55 |
85A0118 |
|
膨胀钉 |
Nail |
|
50 |
|
56 |
85A0119 |
|
膨胀钉 |
Nail |
|
50 |
|
57 |
88A0216 |
|
压条（一） |
Impaction |
|
1 |
|
58 |
81A0068 |
|
橡胶压条（一） |
Impaction |
|
1 |
|
59 |
88A0217 |
|
压条（二） |
Impaction |
|
1 |
|
60 |
88A0218 |
|
压条（三） |
Impaction |
|
1 |
|
61 |
85A0111 |
|
前左立柱内饰件 |
Garnishry |
|
1 |
|
62 |
88A0219 |
|
压条（四） |
Impaction |
|
2 |
|
63 |
81A0069 |
|
橡胶压条（二） |
Impaction |
|
2 |
|
64 |
88A0220 |
|
压条（五） |
Impaction |
|
1 |
|
65 |
81A0070 |
|
橡胶压条（三） |
Impaction |
|
1 |
|
68 |
82A0168 |
|
橡胶限位块 |
Rubber |
|
1 |
|
69 |
47C0117 |
|
CH6350后视镜 |
Mirror |
|
1 |
|
70 |
04B0099 |
GB818-85 |
螺钉 |
Screw |
M4X16-4.8-Zn.D |
2 |
|
71 |
35C0157 |
|
下减震垫 |
Rubber Pad |
|
4 |
|
72 |
17B0046 |
|
橡胶垫 |
Rubber |
|
2 |
|
73 |
00B0019 |
GB5783-86 |
螺栓 |
Bolt |
M10X30-8.8-Zn.D |
4 |
|
74 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
4 |
|
75 |
41D0085 |
|
扶手 |
Rider |
|
2 |
|
76 |
04B0075 |
GB68-85 |
螺钉 |
Screw |
M6X16-4.8-Zn.D |
4 | |
|
|
|
|
| |
|
|
|
|
