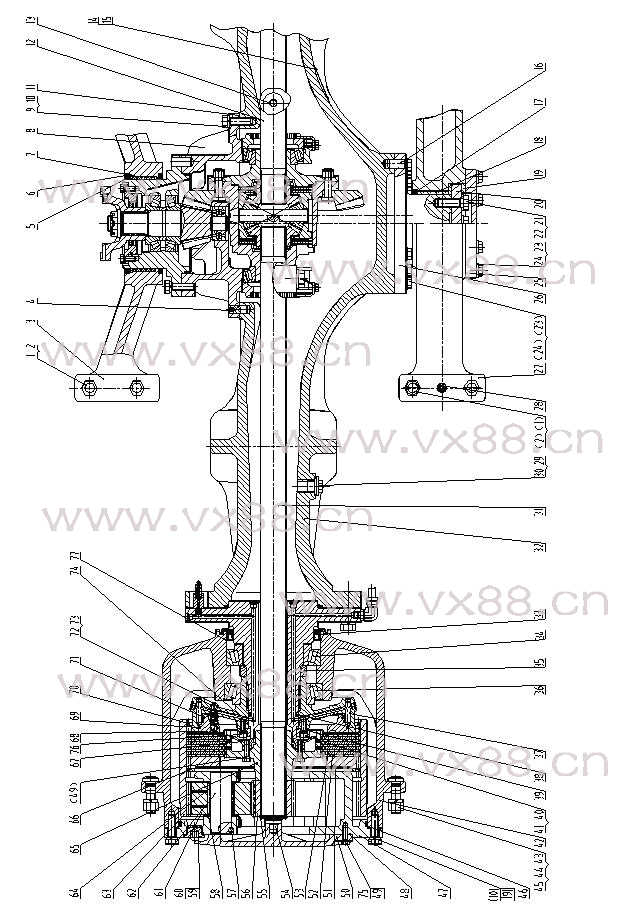

图文名称：后桥总成 01E0083
所属机型：CLG862
图文编号：418
物料编号：01E0083
|
 |
|
| 详细资料 |
|
序号 |
零件号 |
原零件号 |
名 称 |
|
规格 |
数量 |
|
No. |
Part No |
Old Part No. |
Description |
|
Size |
Qty |
|
1 |
01B0124 |
GB5782-86 |
螺栓 |
Bolt |
M20×160-10.9-Zn.D |
8 |
|
2 |
03B0205 |
CB072023-3 |
锁紧螺母 |
Lock Nut |
M20-8 |
8 |
|
3 |
71A0107 |
|
前摆动支架 |
Front Pendulum Bracket |
|
1 |
|
4 |
60A0011 |
ZL50C.2-26 |
定位销 |
Pin |
|
2 |
|
5 |
34C0087 |
ZL50F.3.4 |
密封圈 |
Seal |
|
2 |
|
6 |
00A0259 |
ZL50CIII.3-1 |
卡环 |
Snap |
|
1 |
|
7 |
83A0045 |
ZL50F.3.3-1 |
衬套 |
Bushing |
|
1 |
|
8 |
41C0109 |
|
主传动总成 |
Primary Reduction |
|
1 |
|
9 |
00B0245 |
GB5783-86 |
螺栓 |
Bolt |
M16×50-10.9-Zn.D |
54 |
|
10 |
06B0177 |
5P8247 |
垫圈 |
Snap |
|
54 |
|
11 |
81A0030 |
|
密封垫 |
Seal Gasket |
|
1 |
|
12 |
62A0065 |
|
左半轴 |
Left Axle Shaft |
|
1 |
|
13 |
03B0406 |
Q9001 |
通气塞 |
Breather |
Z1/8 |
1 |
|
14 |
74A0390 |
|
桥铭牌 |
Name Plate |
|
1 |
|
15 |
09B0002 |
GB827-86 |
铆钉 |
Rivet |
2×5 |
4 |
|
16 |
66A0013 |
ZL50F.3-8 |
销 |
Pin |
|
2 |
|
17 |
35C0047 |
ZL50F.3.2 |
密封圈 |
Seal |
|
1 |
|
18 |
83A0083 |
ZL50F.3.1-1 |
衬套 |
Bushing |
|
1 |
|
19 |
88A0157 |
ZL50F.3-6 |
止推垫片 |
Thrust Gasket |
|
2 |
|
20 |
56A0088 |
ZL50F.3-5 |
压紧板 |
Compaction Cover |
|
1 |
|
21 |
00B0159 |
GB5783-86 |
螺栓 |
Bolt |
M18×55-10.9-Zn.D |
4 |
|
22 |
06B0102 |
ZL50F.3-4 |
淬硬垫圈 |
Quench Hardening Washer |
|
4 |
|
23 |
00B0057 |
GB5783-86 |
螺栓 |
Bolt |
M14×45-8.8-Zn.D |
20 |
|
24 |
06B0103 |
ZL50F.3-2 |
淬硬垫圈 |
Quench Hardening Washer |
|
20 |
|
25 |
53A0073 |
ZL50G.3.1-1 |
盖 |
Cover |
|
1 |
|
26 |
61A0109 |
ZL50F.3-7 |
后支承轴 |
Rear Support Spindle |
|
1 |
|
27 |
71A0108 |
|
后摆动支架 |
Rear Pendulum Bracket |
|
1 |
|
28 |
00A0260 |
ZL50CIII.3-2 |
销 |
Pin |
|
2 |
|
29 |
03B0212 |
|
螺塞 |
Oil Nut |
|
2 |
|
30 |
06B0055 |
JB982-77 |
垫圈 |
Washer |
27 |
2 |
|
31 |
62A0066 |
|
右半轴 |
Right Axle Shaft |
|
1 |
|
32 |
41C0145 |
|
桥壳轮边支承 |
Axle Housing Support |
|
1 |
|
33 |
13B0282 |
|
密封圈 |
Seal |
170X200X15 |
2 |
|
34 |
23B0057 |
HR32026XJ |
NSK圆锥滚子轴承 |
NSK Tapered |
130×200×45X45X34 |
2 |
|
34 |
|
|
|
Roller Bearing |
|
|
|
35 |
51C0114 |
|
轴套 |
Bushing |
|
2 |
|
36 |
23B0055 |
HR32028XJ |
NSK圆锥滚子轴承 |
NSK Tapered |
140×210×45X45X34 |
2 |
|
36 |
|
|
|
Roller Bearing |
|
|
|
37 |
24D0031 |
|
内齿轮支承焊接件 |
Ring Gear Support |
|
1 |
|
37 |
|
|
|
Assembly |
|
|
|
38 |
12B0216 |
GB3452.1-92 |
O形圈 |
“O” ring |
97.5×3.55 |
2 |
|
序号 |
零件号 |
原零件号 |
名 称 |
|
规格 |
数量 |
|
No. |
Part No |
Old Part No. |
Description |
|
Size |
Qty |
|
39 |
03B0431 |
|
圆螺母 |
Round Nut |
|
2 |
|
40 |
04B0022 |
GB70-85 |
螺钉 |
Screw |
M10×25-8.8-Zn.D |
4 |
|
41 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
4 |
|
42 |
70A0087 |
|
轮毂 |
Wheel Hub |
|
2 |
|
43 |
01B0379 |
|
螺栓 |
Bolt |
|
40 |
|
44 |
03B0150 |
GB6171-86 |
螺母 |
Nut |
M20×1.5-8-Zn.D |
40 |
|
45 |
06B0019 |
GB93-87 |
垫圈 |
Washer |
20 |
40 |
|
46 |
12B0424 |
GB3452.1-92 |
O形圈 |
“O” ring |
387X7 |
2 |
|
47 |
70A0086 |
|
行星轮架 |
Planner Carrier |
|
2 |
|
48 |
81A0080 |
|
垫片 |
Gasket |
|
2 |
|
49 |
00B0017 |
|
螺栓 |
Bolt |
M12X30-8.8-Zn.D |
16 |
|
50 |
53A0259 |
|
端盖 |
Cover |
|
2 |
|
51 |
52A0118 |
|
承压盘 |
Holding Plate |
|
2 |
|
52 |
51C0094 |
|
对偶钢片 |
Plate |
|
10 |
|
53 |
37C0034 |
|
摩擦片 |
Disc |
|
8 |
|
54 |
61A0019 |
ZL50C.2-20 |
轴 |
Spindle |
|
2 |
|
55 |
07B0028 |
GB894.1-86 |
挡圈 |
Snap |
55 |
2 |
|
56 |
41A0094 |
|
太阳轮 |
Sun Gear |
|
2 |
|
57 |
20B0026 |
GB308-89 |
钢球 |
Steel Ball |
9.525 |
8 |
|
58 |
20A0011 |
ZL50C.2-15A |
垫片 |
Wahser |
|
16 |
|
59 |
03B0432 |
|
螺塞 |
Oil Nut |
|
2 |
|
60 |
06B0054 |
JB982-77 |
垫圈 |
Wahser |
33 |
2 |
|
61 |
41A0095 |
|
行星轮 |
Planetary Gear |
|
8 |
|
62 |
61A0263 |
|
行星轮轴 |
Planner Shaft |
|
8 |
|
63 |
46A0008 |
|
内齿轮 |
Ring Gear |
|
2 |
|
64 |
20B0045 |
|
滚针 |
Needle Roller |
|
224 |
|
65 |
72A0291 |
|
摩擦片支承 |
Disc Support |
|
2 |
|
66 |
07B0075 |
|
挡圈 |
Snap |
|
2 |
|
67 |
72A0292 |
|
圆盘 |
Plate |
|
2 |
|
68 |
50A0072 |
|
活塞 |
Piston |
|
2 |
|
69 |
12B0422 |
|
密封圈 |
Seal |
|
2 |
|
70 |
07B0076 |
|
挡圈 |
Snap |
|
2 |
|
71 |
12B0421 |
|
密封圈 |
Seal |
|
2 |
|
72 |
10B0070 |
|
弹簧 |
Spring |
|
16 |
|
73 |
75A0128 |
|
钢丝挡圈 |
Steel Wire |
|
4 |
|
74 |
12B0423 |
GB3452.1-92 |
O形圈 |
“O”ring |
106×3.55 |
2 |
|
75 |
06B0008 |
GB93-87 |
垫圈 |
Washer |
12 |
16 |
|
76 |
00B0002 |
GB5783-86 |
螺栓 |
Bolt |
M10×35-8.8-Zn.D |
8 |
|
77 |
07B0106 |
GB893.1-86 |
挡圈 |
Snap |
200 |
2 | |
|
|
|
|
| |
|
|
|
|
