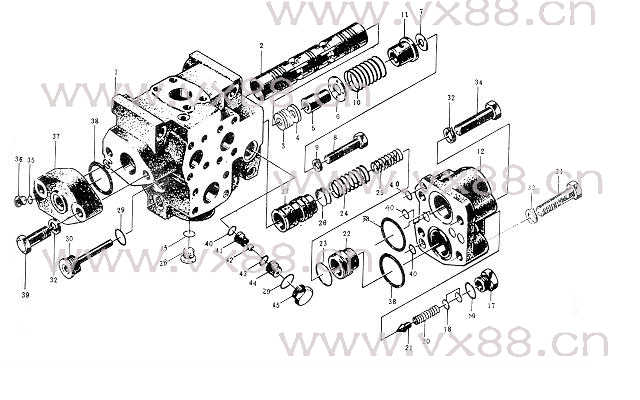

图文名称：流量放大阀 LF32
所属机型：CLG856
图文编号：471
物料编号：LF32
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
70A0010 |
LF32-1 |
阀体 |
Body |
|
1 |
|
2 |
65A0014 |
LF32-2 |
阀杆 |
Spool |
|
1 |
|
3 |
57A0028 |
LF32-3 |
调压垫片 |
Shim |
|
5 |
|
4 |
57A0029 |
LF32-4 |
调压垫片 |
Shim |
|
2 |
|
5 |
61A0044 |
LF32-5 |
导杆 |
Retainer |
|
1 |
|
6 |
56A0043 |
LF32-6 |
垫圈 |
Washer |
|
1 |
|
7 |
56A0044 |
LF32-7 |
垫圈 |
Washer |
|
1 |
|
8 |
01B0083 |
GB5782-86 |
螺栓 |
Bolt |
M10×60-8.8-Zn.D |
1 |
|
9 |
06B0002 |
GB93-87 |
垫圈 |
Lock Washer |
10 |
1 |
|
10 |
75A0020 |
LF32-8 |
复位弹簧 |
Spring |
|
1 |
|
11 |
55A0079 |
LF32-9 |
导座 |
Seat |
|
1 |
|
12 |
54A0023 |
LF32-10 |
端盖 |
Cover |
|
1 |
|
13 |
12B0261 |
GB1235-76 |
O形密封圈 |
“O” Ring |
16×2.4 |
1 |
|
17 |
03B0063 |
LF32-11 |
螺塞 |
Plug |
|
1 |
|
18 |
57A0030 |
LF32-12 |
调整垫片 |
Shim |
|
14 |
|
19 |
12B0229 |
GB1235-76 |
O形圈 |
“O” Ring |
20×2.4 |
14 |
|
20 |
75A0021 |
LF32-13 |
调压弹簧 |
Spring |
|
1 |
|
21 |
65A0015 |
LF32-14 |
锥阀 |
Poppet |
|
1 |
|
22 |
63A0006 |
LF32-15 |
阀座 |
Seat |
|
1 |
|
23 |
12B0047 |
GB3452.1-92 |
O形圈 |
“O” Ring |
31.5×3.55 |
1 |
|
24 |
75A0022 |
LF32-16 |
弹簧 |
Spring |
|
1 |
|
25 |
75A0023 |
LF32-17 |
弹簧 |
Spring |
|
1 |
|
26 |
57A0031 |
LF32-18 |
调整垫片 |
Shim |
|
1 |
|
27 |
65A0016 |
LF32-19 |
阀芯 |
Poppet |
|
1 |
|
28 |
03B0064 |
LF32-20 |
螺塞 |
Plug |
|
1 |
|
29 |
12B0043 |
GB1235-76 |
O形圈 |
“O” Ring |
24×2.4 |
2 |
|
30 |
03B0065 |
LF32-21 |
止动螺塞 |
Plug |
|
1 |
|
31 |
01B0102 |
GB5782-86 |
螺栓 |
Bolt |
M12×65-8.8 |
2 |
|
32 |
06B0008 |
GB93-87 |
垫圈 |
Lock Washer |
12 |
6 |
|
34 |
01B0103 |
GB5782-86 |
螺栓 |
Bolt |
M12×80-8.8 |
2 |
|
35 |
12B0046 |
GB1235-76 |
O形圈 |
“O” Ring |
9×1.9 |
8 |
|
36 |
03B0066 |
LF32-22 |
螺塞 |
Plug |
|
8 |
|
37 |
54A0024 |
LF32-23 |
端盖 |
Cover |
|
1 |
|
38 |
12B0048 |
GB3452.1-92 |
O形圈 |
“O” Ring |
43.7×3.55 |
3 |
|
39 |
01B0004 |
GB5782-86 |
螺栓 |
Bolt |
M12×45-8.8 |
2 |
|
40 |
12B0090 |
GB3452.1-92 |
O形圈 |
“O” Ring |
10.6×1.8 |
7 |
|
41 |
63A0008 |
LF32-24 |
下阀座 |
Seat |
|
1 |
|
42 |
20B0007 |
GB308-84 |
钢球 |
Ball |
φ9.5 |
1 |
|
43 |
12B0050 |
GB3452.1-92 |
O形圈 |
“O” Ring |
12.5×1.8 |
1 |
|
44 |
63A0009 |
LF32-25 |
上阀座 |
Seat |
|
1 |
|
45 |
03B0067 |
LF32-26 |
螺塞 |
Plug |
|
1 | |
|
|
|
|
| |
|
|
|
|
