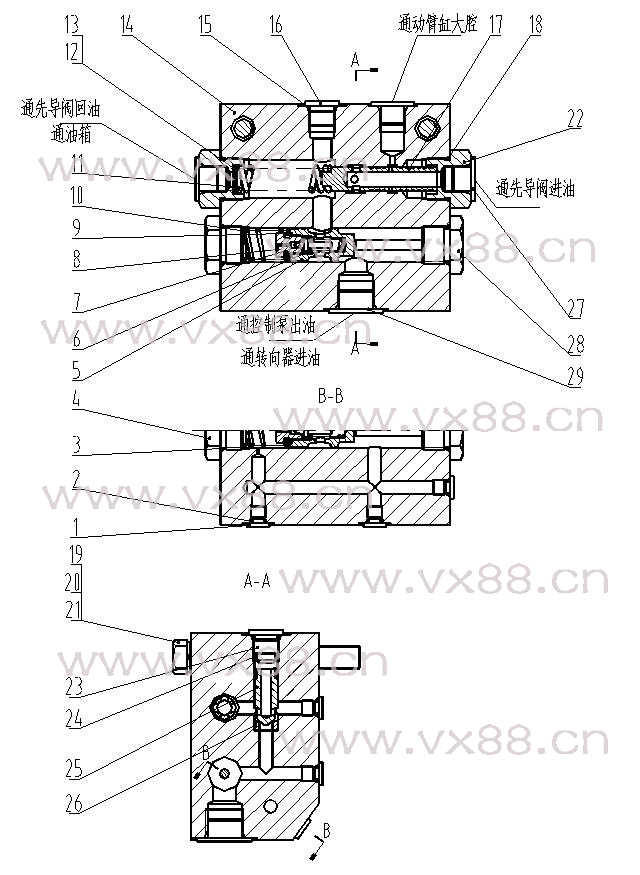

图文名称：组合阀 ZHF
所属机型：CLG856
图文编号：473
物料编号：ZHF
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
03B0066 |
LF32-22 |
螺塞 |
Plug |
|
5 |
|
2 |
12B0046 |
GB1235-76 |
O形圈 |
“O” Ring |
9×1.9 |
5 |
|
3 |
12B0207 |
GB1235-76 |
O形圈 |
“O” Ring |
22×2.4 |
3 |
|
4 |
03B0068 |
ZL50C.9.16A-2 |
螺塞 |
Plug |
|
1 |
|
5 |
00A0047 |
ZL50C.9.16-1 |
阀芯 |
Spool |
|
1 |
|
6 |
75A0025 |
ZL50C.9.16-7 |
调压弹簧 |
Spring |
|
1 |
|
7 |
65A0017 |
ZL50C.9.16-8 |
锥阀 |
Valve |
|
1 |
|
8 |
51A0053 |
ZL50C.9.16-5 |
阀座 |
Seat |
|
1 |
|
9 |
56A0047 |
ZL50C.9.16-6 |
垫片 |
Washer |
|
1 |
|
10 |
75A0024 |
ZL50C.9.16-4 |
复位弹簧 |
Spring |
|
1 |
|
11 |
75A0079 |
ZL50CⅠ.10.28-4 |
弹簧 |
Spring |
|
1 |
|
12 |
57A0064 |
ZL50CⅠ.10.28-2 |
调整垫片 |
Washer |
|
4 |
|
13 |
57A0065 |
ZL50CⅠ.10.28-3 |
调整垫片 |
Washer |
|
6 |
|
14 |
78A0030 |
ZL50E.10.16-6 |
阀体 |
Valve Body |
|
1 |
|
15 |
12B0261 |
GB1235-76 |
O形圈 |
“O” Ring |
16×2.4 |
2 |
|
16 |
03B0064 |
LF32-20 |
螺塞 |
Plug |
|
1 |
|
17 |
65A0036 |
ZL50CⅠ.10.28-6 |
阀芯 |
Spool |
|
1 |
|
18 |
12B0043 |
GB1235-76 |
O形圈 |
“O” Ring |
24×2.4 |
2 |
|
19 |
01B0142 |
GB5782-86 |
螺栓 |
Bolt |
M12×90-8.8-Zn.D |
2 |
|
20 |
06B0008 |
GB93-87 |
垫圈 |
Lock Washer |
12 |
2 |
|
21 |
06B0007 |
GB97.1-85 |
垫圈 |
Washer |
12-140HV-Zn.D |
2 |
|
22 |
00A0154 |
ZL50CⅠ.10.28-1 |
接头 |
Joint |
|
2 |
|
23 |
03B0344 |
ZL50CⅠ.10.13-11 |
定位螺塞 |
Plug |
|
1 |
|
24 |
75A0106 |
ZL50CⅠ.10.13-7 |
复位弹簧 |
Spring |
|
1 |
|
25 |
65A0042 |
ZL50CⅠ.10.13-8 |
单向阀芯 |
Spool |
|
1 |
|
26 |
56A0142 |
ZL50E.10.16-11 |
阀座 |
Seat |
|
1 |
|
27 |
86A0086 |
FJ0314 |
封堵 |
Plug |
|
3 |
|
28 |
03B0345 |
ZL50CⅠ.10.13-9 |
限位螺塞 |
Plug |
|
1 |
|
29 |
84A0127 |
FJ0320 |
封堵 |
Plug |
|
1 | |
|
|
|
|
| |
|
|
|
|
