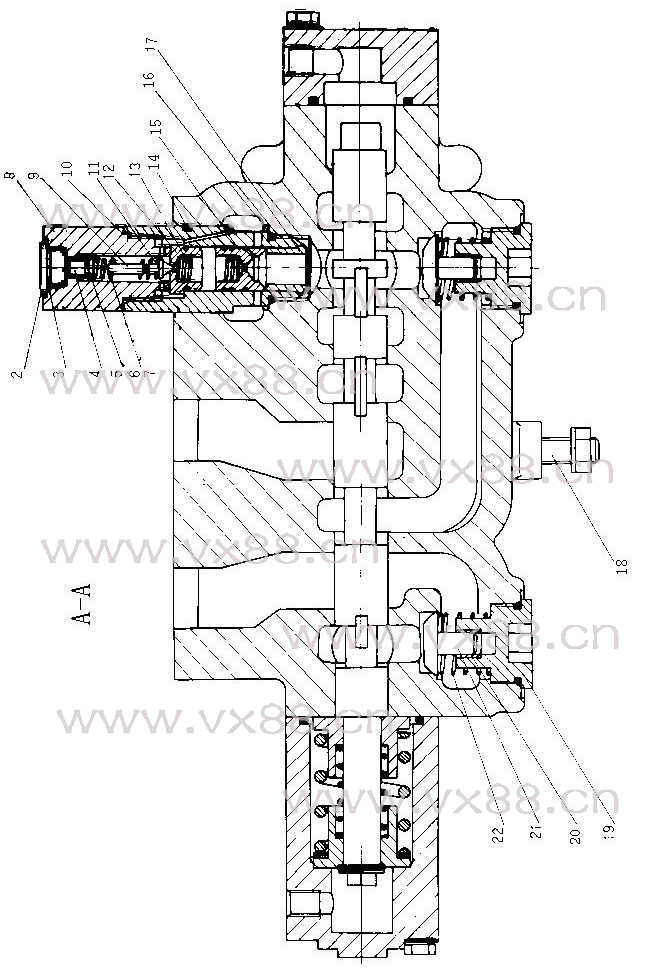

图文名称：分配阀1 XFPF32
所属机型：CLG856
图文编号：474
物料编号：XFPF32
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
01B0034 |
GB5782-86 |
螺栓 |
Bolt |
M10×40 |
4 |
|
2 |
03B0097 |
XFPF32-10 |
螺塞 |
Plug |
|
1 |
|
3 |
12B0067 |
GB3452.1-82 |
O形圈 |
“O” Ring |
16×1.8 |
1 |
|
4 |
00B0071 |
XFPF32.3-8 |
调压螺杆 |
Screw Bolt |
|
1 |
|
5 |
56A0055 |
XFPF32.3-11 |
挡片 |
Pad |
|
1 |
|
6 |
75A0049 |
XFPF32.3-10 |
弹簧 |
Spring |
|
1 |
|
7 |
78A0022 |
XFPF32.3-2 |
溢流阀体 |
Valve Body |
|
1 |
|
8 |
63A0027 |
XFPF32.3-5 |
阀端 |
Bonnet |
|
1 |
|
9 |
66A0006 |
XFPF32.3-7 |
销 |
Pin |
|
1 |
|
10 |
12B0056 |
GB3452.1-82 |
O形圈 |
“O” Ring |
30×2.65 |
1 |
|
11 |
65A0032 |
XFPF32.3-6 |
阀芯 |
Spool |
|
1 |
|
12 |
63A0026 |
XFPF32.3-4 |
座 |
Seat |
|
1 |
|
13 |
75A0048 |
XFPF32.3-9 |
弹簧 |
Spring |
|
1 |
|
14 |
12B0076 |
GB3452.1-82 |
O形圈 |
“O” Ring |
38.7×3.55 |
1 |
|
15 |
65A0031 |
XFPF32.3-3 |
阀芯 |
Spool |
|
1 |
|
16 |
12B0056 |
GB3452.1-82 |
O形圈 |
“O” Ring |
30×2.65 |
2 |
|
17 |
55A0105 |
XFPF32.3-1 |
衬套 |
Bearing |
|
1 |
|
18 |
01B0051 |
GB5782-86 |
螺栓 |
Bolt |
M12×145 |
1 |
|
19 |
03B0099 |
XFPF32-19 |
螺塞 |
Plug |
|
3 |
|
20 |
55A0100 |
XFPF32-18 |
衬套 |
Bearing |
|
3 |
|
21 |
65A0029 |
XFPF32-17 |
阀芯 |
Spool |
|
3 |
|
22 |
75A0046 |
XFPF32-16 |
弹簧 |
Spring |
|
3 |
|
23 |
01B0050 |
GB5782-86 |
螺栓 |
Bolt |
M12×165 |
2 |
|
24 |
06B0007 |
GB97.1-85 |
垫圈 |
Washer |
12-140HV-Zn.D |
5 |
|
25 |
12B0332 |
GB3452.1-82 |
O形圈 |
“O” Ring |
38.7×2.65 |
3 |
|
26 |
03B0098 |
XFPF32-15 |
螺塞 |
Plug |
|
1 |
|
27 |
12B0272 |
GB3452.1-86 |
O形圈 |
“O” Ring |
43.7×2.65 |
1 |
|
28 |
75A0045 |
XFPF32-14 |
弹簧 |
Spring |
|
1 |
|
29 |
65A0028 |
XFPF32-13 |
阀芯 |
Spool |
|
1 |
|
30 |
01B0158 |
GB5782-86 |
螺栓 |
Bolt |
M10×100 |
4 |
|
31 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
8 |
|
32 |
03B0100 |
XFPF32.1-1 |
扩口螺母 |
Nut |
|
1 |
|
33 |
03B0088 |
GB6173-86 |
螺母 |
Nut |
M12×1.5 |
1 |
|
34 |
04B0030 |
XFPF32.1-3 |
螺钉 |
Bolt |
|
1 |
|
35 |
03B0101 |
XFPF32.1-4 |
螺塞 |
Plug |
|
1 |
|
36 |
57A0046 |
XFPF32.1-5 |
淬硬垫圈 |
Washer |
|
2 |
|
37 |
55A0104 |
XFPF32.1-6 |
溢流阀套 |
Housing |
|
1 |
|
38 |
75A0047 |
XFPF32.1-7 |
弹簧 |
Spring |
|
1 |
|
39 |
12B0074 |
GB3452.1-82 |
O形圈 |
“O” Ring |
23.6×2.65 |
1 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
40 |
57A0047 |
XFPF32.1-8 |
挡片 |
Pad |
|
1 |
|
41 |
65A0030 |
XFPF32.1-9 |
阀芯 |
Spool |
|
1 |
|
42 |
12B0229 |
GB1235-76 |
O形密封圈 |
“O” Ring |
20×2.4 |
2 |
|
44 |
57A0045 |
XFPF32.1-2 |
垫片 |
Washer |
|
2 |
|
47 |
13A0055 |
XFPF32-1 |
盖 |
Cover |
|
1 |
|
48 |
12B0009 |
GB3452.1-82 |
O形圈 |
“O” Ring |
36.5×3.55 |
1 |
|
49 |
65A0026 |
XFPF32-2 |
翻斗阀杆 |
Tilt Spool |
|
1 |
|
50 |
72A0040 |
XFPF32-12 |
外套 |
Bushing |
|
2 |
|
51 |
12B0019 |
GB3452.1-82 |
O形圈 |
“O” Ring |
46.2×3.55 |
2 |
|
52 |
65A0027 |
XFPF32-11 |
提升阀杆 |
Lift Spool |
|
1 |
|
53 |
03B0097 |
XFPF32-10 |
螺塞 |
Plug |
|
1 |
|
54 |
12B0067 |
GB3452.1-82 |
O形圈 |
“O” Ring |
16×1.8 |
1 |
|
55 |
78A0021 |
XFPF32-9 |
阀体 |
Valve Body |
|
1 |
|
56 |
12B0078 |
GB3452.1-86 |
O形圈 |
“O” Ring |
56×3.55 |
2 |
|
57 |
72A0039 |
XFPF32-8 |
外套 |
Bushing |
|
2 |
|
58 |
63A0025 |
XFPF32-7 |
座圈 |
Race |
|
4 |
|
59 |
75A0044 |
XFPF32-6 |
弹簧 |
Spring |
|
2 |
|
60 |
75A0043 |
XFPF32-5 |
弹簧 |
Spring |
|
2 |
|
61 |
57A0043 |
XFPF32-4 |
垫片 |
Washer |
|
4 |
|
62 |
57A0044 |
XFPF32-22 |
垫片 |
Washer |
|
16 |
|
64 |
00B0011 |
GB5783-86 |
螺栓 |
Bolt |
M12×25-8.8-Zn.D |
14 |
|
65 |
57A0042 |
XFPF32-3 |
垫片 |
Washer |
|
4 |
|
66 |
06B0008 |
GB93-87 |
垫圈 |
Washer |
12 |
6 |
|
67 |
06B0046 |
GB848-85 |
垫圈 |
Washer |
10-140HV |
8 | |
|
|
|
|
| |
|
|
|
|
