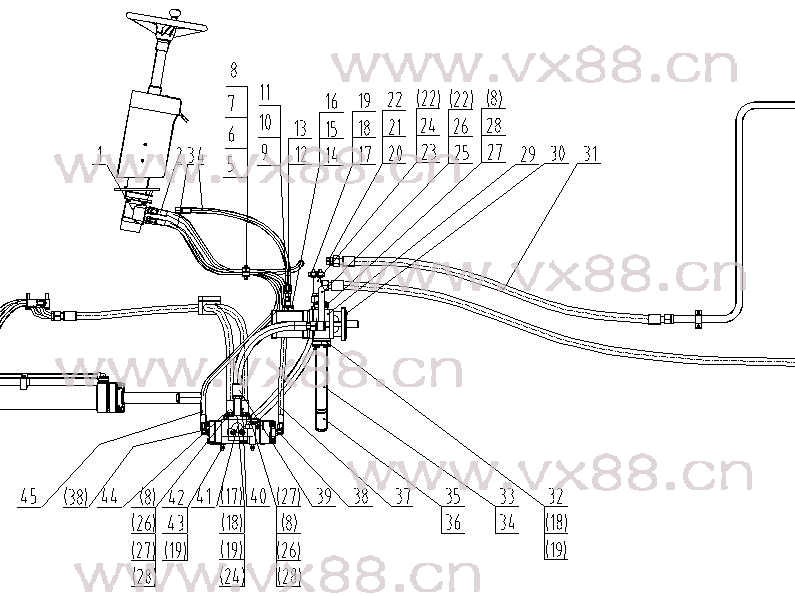

图文名称：转向液压系统1 10E0049
所属机型：CLG856
图文编号：477
物料编号：10E0049
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
10E0021 |
|
方向机安装总成 |
Steering Gear |
|
1 |
|
2 |
06C0092 |
ZL50G.9.2 |
软管总成 |
Hose |
|
1 |
|
3 |
06C0093 |
ZL50G.9.3.1 |
软管总成 |
Hose |
|
1 |
|
4 |
06C0376 |
|
软管总成 |
Hose |
|
1 |
|
5 |
17B0014 |
ZL50G.9-1 |
管夹 |
Clamp |
|
2 |
|
6 |
10A0177 |
ZL50G.9-2 |
板 |
Plate |
|
1 |
|
7 |
01B0157 |
GB5782-86 |
螺栓 |
Bolt |
M10×50-8.8-Zn.D |
2 |
|
8 |
06B0002 |
GB93-87 |
垫圈 |
Lock Washer |
10 |
26 |
|
9 |
15D0051 |
ZL50G.9.5 |
接头 |
Joint |
|
1 |
|
10 |
12B0285 |
GB3452.1-92 |
O形圈 |
“O” Ring |
10.6×1.8 |
4 |
|
11 |
12B0004 |
GB3452.1-92 |
O形圈 |
“O” Ring |
23.6×3.55 |
1 |
|
12 |
03B0093 |
ZL50C.10.18-1 |
螺塞 |
Plug |
|
1 |
|
13 |
12B0199 |
GB3452.1-92 |
O形圈 |
“O” Ring |
11.2×2.65 |
1 |
|
14 |
54A0071 |
ZL20.10.20-1 |
压板 |
Clamp |
|
1 |
|
15 |
00B0085 |
GB5783-86 |
螺栓 |
Bolt |
M8×25-8.8-Zn.D |
4 |
|
16 |
06B0006 |
GB93-87 |
垫圈 |
Lock Washer |
8 |
16 |
|
17 |
72A0010 |
ZL50C.10.4-6 |
压板 |
Clamp |
|
3 |
|
18 |
00B0017 |
GB5783-86 |
螺栓 |
Bolt |
M12×30-8.8-Zn.D |
16 |
|
19 |
06B0008 |
GB93-87 |
垫圈 |
Lock Washer |
12 |
22 |
|
20 |
00A0309 |
JT063033 |
管接头 |
Joint |
|
1 |
|
21 |
12B0144 |
GB1235-76 |
O形圈 |
“O” Ring |
32×3.1 |
1 |
|
22 |
12B0292 |
GB3452.1-92 |
O形圈 |
“O” Ring |
21.2×1.8 |
9 |
|
23 |
15D0052 |
ZL50G.9.6 |
接头 |
Joint |
|
1 |
|
24 |
12B0009 |
GB3452.1-92 |
O形圈 |
“O” Ring |
36.5×3.55 |
3 |
|
25 |
10D0186 |
ZL50G.9.7 |
钢管总成 |
Tube |
|
1 |
|
26 |
12B0015 |
GB3452.1-92 |
O形圈 |
“O” Ring |
30×3.55 |
3 |
|
27 |
72A0027 |
ZL50C.9.17-6 |
压板 |
Clamp |
|
3 |
|
28 |
00B0019 |
GB5783-86 |
螺栓 |
Bolt |
M10×30-8.8-Zn.D |
20 |
|
29 |
11C0014 |
CBGj2063/
CBGj1016 |
齿轮泵 |
Gear Pump |
|
1 |
|
30 |
82A0059 |
ZL50G.9-4 |
密封垫片 |
Washer |
|
1 |
|
31 |
00C0047 |
ZL50G.9.8 |
散热器进出油管路 |
Hose Group |
|
1 |
|
32 |
72A0003 |
ZL50C.9.12-1 |
压板 |
Clamp |
|
1 |
|
33 |
10D0191 |
ZL50G.9.9 |
钢管总成 |
Tube |
|
1 |
|
34 |
12B0019 |
GB3452.1-92 |
O形圈 |
“O” Ring |
46.2×3.55 |
1 |
|
35 |
32A0003 |
ZL50C.9.12-2 |
吸油软管 |
Hose |
|
1 |
|
36 |
15B0017 |
ZB/T32005.1-88 |
双钢丝式环箍 |
Clamp |
60 |
2 |
|
37 |
06C0098 |
ZL50G.9.10 |
软管总成 |
Hose |
|
1 |
|
38 |
31C0022 |
ZL50G.9.11 |
可调接头 |
Joint |
|
2 |
|
39 |
07C0057 |
ZL50G.9.12 |
软管总成 |
Hose |
|
1 |
|
40 |
06C0404 |
ZL50G.9.13B |
软管总成 |
Hose |
|
1 |
|
41 |
12C0009 |
LF32 |
流量放大阀 |
Steering Control Valve |
|
1 |
|
42 |
01B0283 |
GB5782-86 |
螺栓 |
Bolt |
M12×120-8.8-Zn.D |
3 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
43 |
03B0003 |
GB6170-86 |
螺母 |
Nut |
M12-8-Zn.D |
3 |
|
44 |
06C0405 |
ZL50G.9.14B |
软管总成 |
Hose |
|
1 |
|
45 |
06C0101 |
ZL50G.9.15 |
软管总成 |
Hose |
|
1 |
|
46 |
10C0030 |
ZL50G.9.16 |
右转向油缸 |
Right Steering Cylinder |
|
1 |
|
47 |
04B0078 |
GB70-85 |
螺钉 |
Bolt |
M8×20-8.8-Zn.D |
8 |
|
48 |
10D0615 |
ZL50G.9.17A |
钢管总成 |
Tube |
|
1 |
|
49 |
12B0066 |
GB3452.1-92 |
O形圈 |
“O” Ring |
22.4×2.65 |
2 |
|
50 |
12B0370 |
GB3452.1-92 |
O形圈 |
“O” Ring |
15×1.8 |
8 |
|
51 |
27A0055 |
ZL50G.9-3 |
管夹 |
Clamp |
|
2 |
|
52 |
00B0007 |
GB5783-86 |
螺栓 |
Bolt |
M8×16-8.8-Zn.D |
4 |
|
53 |
06B0005 |
GB97.1-85 |
垫圈 |
Washer |
8-140HV-Zn.D |
4 |
|
54 |
06C0102 |
ZL50G.9.18 |
软管总成 |
Hose |
|
2 |
|
55 |
06C0103 |
ZL50G.9.19 |
软管总成 |
Hose |
|
2 |
|
56 |
10D0613 |
ZL50G.9.20A |
钢管总成 |
Tube |
|
1 |
|
57 |
12B0003 |
GB3452.1-92 |
O形圈 |
“O” Ring |
25.8×3.55 |
2 |
|
58 |
10D0614 |
ZL50G.9.21A |
钢管总成 |
Tube |
|
1 |
|
59 |
10D0616 |
ZL50G.9.22A |
钢管总成 |
Tube |
|
1 |
|
60 |
15D0057 |
ZL50G.9.23 |
接头块 |
Joint Body |
|
1 |
|
61 |
01B0101 |
GB5782-86 |
螺栓 |
Bolt |
M12×65-8.8-Zn.D |
3 |
|
62 |
09C0092 |
SM532PPDP-AS |
管夹 |
Clamp |
|
2 |
|
63 |
10C0031 |
ZL50G.9.25 |
左转向油缸 |
Lift Steering Cylinder |
|
1 |
|
64 |
00B0012 |
GB5783-86 |
螺栓 |
Bolt |
M10×25-8.8-Zn.D |
4 |
|
65 |
24A0078 |
TS14 |
支承轨 |
Rail |
|
1 |
|
66 |
03B0093 |
ZL50C.10.18-1 |
螺塞 |
Plug |
|
2 |
|
67 |
15D0060 |
ZL50G.9.27 |
接头 |
Joint |
|
1 |
|
68 |
07C0060 |
ZL50G.9.28 |
软管总成 |
Hose |
|
1 | |
|
|
|
|
| |
|
|
|
|
