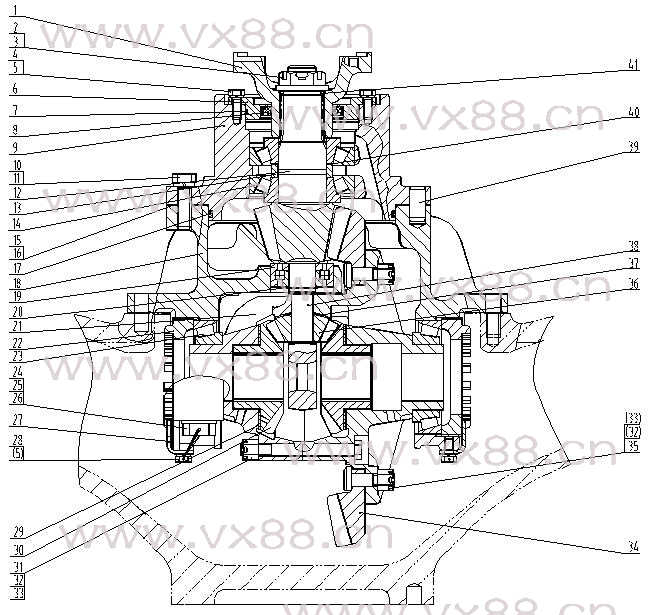

图文名称：后桥主传动 41C0030
所属机型：CLG856
图文编号：485
物料编号：41C0030
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
04A0040 |
|
法兰 |
Flange |
|
1 |
|
2 |
03B0050 |
BS305-31 |
带槽螺母 |
Nut |
|
1 |
|
3 |
08B0032 |
GB91-86 |
销 |
Pin |
6.3×60 |
1 |
|
4 |
00B0012 |
GB5783-86 |
螺栓 |
Bolt |
M10×25-8.8-Zn.D |
4 |
|
5 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
6 |
|
6 |
53A0110 |
|
油封座 |
Oil Sealing Seat |
|
1 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
7 |
12B0034 |
GB3452.1-92 |
O形圈 |
“O” Ring |
122×3.55 |
1 |
|
8 |
13B0169 |
B1SL 348203 |
油封 |
Seal |
70×95×13 |
1 |
|
9 |
70A0033 |
|
轴承座 |
Bearing Seat |
|
1 |
|
10 |
00B0094 |
GB5783-86 |
螺栓 |
Bolt |
M16×45-8.8-Zn.D |
11 |
|
11 |
06B0015 |
GB93-87 |
垫圈 |
Washer |
16 |
11 |
|
12 |
43A0013 |
|
后桥主动螺旋锥齿轮 |
Driving Helical Bevel Gear |
|
1 |
|
13 |
55A0078 |
ZL50C.2.1-18 |
轴套 |
Spacer |
|
1 |
|
14 |
23B0018 |
GB/T297-94 |
圆锥滚子轴承31311 |
Row Tapered Roller Bearing |
55×120×31.5 |
2 |
|
15 |
57A0079 |
|
调整垫片 |
Adjusting Shim |
0.50 |
2 |
|
16 |
57A0078 |
|
调整垫片 |
Adjusting Shim |
0.20 |
2 |
|
17 |
12B0246 |
GB3452.1-92 |
O形圈 |
“O” Ring |
200×5.3 |
1 |
|
18 |
41C0028 |
|
托架总成 |
Bracket Assembly |
|
1 |
|
19 |
22B0005 |
NUP2306ET |
NSK圆柱滚子轴承 |
Row Cylindrical Roller Bearing |
30×72×27 |
1 |
|
20 |
07B0027 |
GB894.1-86 |
挡圈 |
Ring |
30 |
1 |
|
21 |
34C0010 |
ZL40B.2.1.3 |
差速器壳 |
Differential Case |
|
1 |
|
22 |
03B0130 |
ZL40B.2.1-9 |
调整螺母 |
Adjusting Nut |
|
2 |
|
23 |
23B0017 |
GB/T297-94 |
圆锥滚子轴承32215 |
Row Tapered Roller Bearing |
75×130×33.25 |
2 |
|
24 |
02B0015 |
GB32.1-88 |
螺栓 |
Bolt |
M22×100-8.8-Zn.D |
4 |
|
25 |
06B0156 |
GB97.1-85 |
垫圈 |
Washer |
22-200HV-Zn.D |
4 |
|
26 |
40B0006 |
|
铁丝 |
Wire |
φ1.5×450 |
2 |
|
27 |
76A0011 |
ZL50C.2.1-7 |
锁紧片 |
Lock Strap |
|
4 |
|
28 |
02B0012 |
GB32.1-88 |
螺栓 |
Bolt |
M10×20-8.8-Zn.D |
2 |
|
29 |
56A0042 |
ZL50C.2.1-13 |
半轴齿轮垫片 |
Spacer |
|
2 |
|
30 |
43A0007 |
ZL40B.2.1-10 |
半轴齿轮 |
Gear |
|
2 |
|
31 |
01B0079 |
ZL40B.2.1-12 |
螺栓 |
Bolt |
|
8 |
|
32 |
03B0156 |
GB9457-88 |
螺母 |
Nut |
M14×1.5-8-Zn.D |
20 |
|
33 |
08B0040 |
GB91-86 |
销 |
Pin |
3.2×30 |
20 |
|
34 |
43A0012 |
|
后桥大螺旋锥齿轮 |
Driven Helical Bevel Gear |
|
1 |
|
35 |
01B0080 |
ZL40B.2.1-14 |
螺栓 |
Bolt |
|
12 |
|
36 |
43A0006 |
ZL40B.2.1-8 |
锥齿轮 |
Bevel Gear |
|
4 |
|
37 |
56A0075 |
ZL40B.2.1-7 |
锥齿轮垫片 |
Spacer |
|
4 |
|
38 |
63A0031 |
ZL40B.2.1-13 |
十字轴 |
Shaft |
|
1 |
|
39 |
66A0013 |
ZL50F.3-8 |
销 |
Pin |
|
2 |
|
40 |
57A0027 |
ZL50C.2.1-19 |
垫片 |
Spacer |
|
1 |
|
41 |
12B0105 |
GB3452.1-92 |
O形圈 |
“O” Ring |
42.5×5.3 G |
