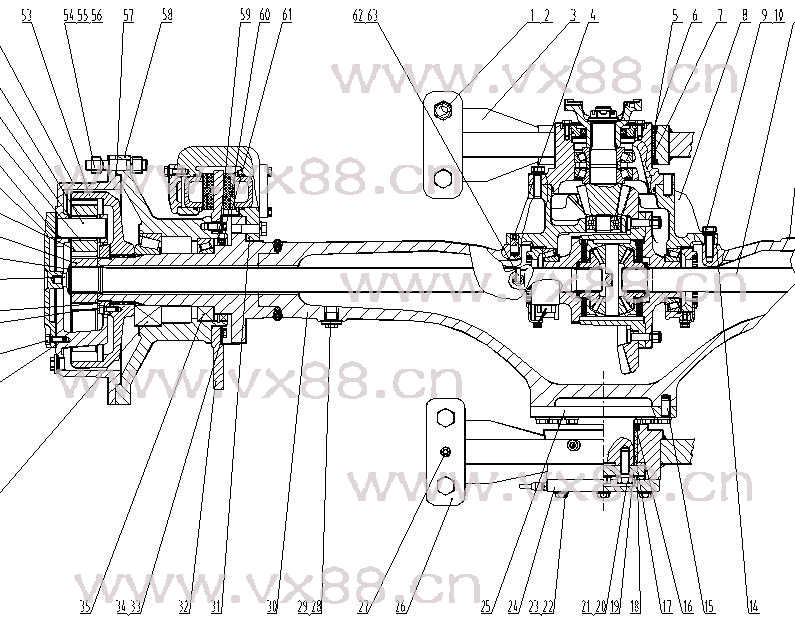

图文名称：后桥总成 01E0022
所属机型：CLG856
图文编号：486
物料编号：01E0022
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
01B0167 |
GB5785-86 |
螺栓 |
Bolt |
M24×2×130-10.9-Zn.D |
8 |
|
2 |
03B0200 |
CB082428-3 |
锁紧螺母 |
Lock Nut |
M24×2 |
8 |
|
3 |
41C0015 |
ZL50G.3.1.1 |
前摆动支架 |
Bracket |
|
1 |
|
4 |
60A0011 |
ZL50C.2-26 |
定位销 |
Locator |
|
2 |
|
5 |
35C0087 |
ZL50F.3.4 |
密封圈 |
Seal |
|
2 |
|
6 |
00A0259 |
ZL50CⅢ.3-1 |
卡环 |
Ring |
|
1 |
|
7 |
83A0045 |
ZL50F.3.3-1 |
衬套 |
Spacer |
|
1 |
|
8 |
41C0030 |
|
后桥主传动 |
Rear Axle Main Transmission |
|
1 |
|
9 |
00B0245 |
GB5783-86 |
螺栓 |
Bolt |
M16×50-8.8-Zn.D |
14 |
|
10 |
06B0177 |
GB93-87 |
垫圈 |
Washer |
16 |
14 |
|
11 |
62A0024 |
|
半轴 |
Half Shaft |
|
1 |
|
12 |
09B0002 |
GB827-86 |
铆钉 |
Rivet |
2×5 |
4 |
|
13 |
74A0098 |
|
桥铭牌 |
Film |
|
1 |
|
14 |
81A0030 |
|
密封垫 |
Gasket |
|
1 |
|
15 |
66A0013 |
ZL50F.3-8 |
销 |
Pin |
|
2 |
|
16 |
35C0047 |
ZL50F.3.2 |
密封圈 |
Seal |
|
1 |
|
17 |
83A0083 |
ZL50F.3.1-1 |
衬套 |
Spacer |
|
1 |
|
18 |
83A0046 |
ZL50F.3-6 |
止推垫片 |
Spacer |
|
2 |
|
19 |
56A0088 |
ZL50F.3-5 |
压紧板 |
Cap |
|
1 |
|
20 |
00B0159 |
GB5783-86 |
螺栓 |
Bolt |
M18×55-10.9-Zn.D |
4 |
|
21 |
06B0102 |
ZL50F.3-4 |
淬硬垫圈 |
Washer |
|
4 |
|
22 |
00B0057 |
GB5783-86 |
螺栓 |
Bolt |
M14×45-8.8-Zn.D |
20 |
|
23 |
06B0103 |
ZL50F.3-2 |
淬硬垫圈 |
Washer |
|
20 |
|
24 |
53A0073 |
ZL50G.3.1-1 |
盖 |
Cover |
|
1 |
|
25 |
61A0109 |
ZL50F.3-7 |
后支承轴 |
Support Trunnion |
|
1 |
|
26 |
24D0009 |
|
后摆动支架 |
Bracket |
|
1 |
|
27 |
00A0260 |
ZL50CIII.3-2 |
销 |
Pin |
|
2 |
|
28 |
06B0055 |
JB982-77 |
组合密封垫圈 |
Seal Assembly |
27 |
4 |
|
29 |
03B0212 |
|
螺塞 |
Plug Screw |
|
4 |
|
30 |
24D0007 |
|
桥壳轮边支承轴 |
Support Shaft |
02年2月改为24D0019 |
1 |
|
31 |
45C0005 |
ZL50C.2.2A |
夹钳总成 |
Torque Plate Assembly |
|
2 |
|
32 |
52A0038 |
ZL40B.2-19 |
制动盘 |
Brake Disk |
|
2 |
|
33 |
00B0273 |
GB5783-86 |
螺栓 |
Bolt |
M14×40-8.8-Zn.D |
40 |
|
34 |
06B0013 |
GB93-87 |
垫圈 |
Washer |
14 |
40 |
|
35 |
23B0001 |
GB/T297-94 |
圆锥滚子轴承32022 |
Row Tapered Roller Bearing |
110×170×38 |
2 |
|
36 |
23B0010 |
GB/T297-94 |
圆锥滚子轴承32221 |
Row Tapered Roller Bearing |
105×190×53 |
2 |
|
37 |
81A0026 |
ZL40B.2-17 |
密封垫 |
Gasket |
|
2 |
|
38 |
06B0008 |
GB93-87 |
垫圈 |
Washer |
12 |
12 |
|
39 |
00B0017 |
GB5783-86 |
螺栓 |
Bolt |
M12×30-8.8-Zn.D |
12 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
40 |
04B0022 |
GB70-85 |
螺钉 |
Screw |
M10×25-8.8-氧化 |
4 |
|
41 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
4 |
|
42 |
03B0010 |
ZL50C.2-22 |
圆螺母 |
Circular Nut |
|
2 |
|
43 |
61A0019 |
ZL50C.2-20 |
轴 |
Shaft |
|
2 |
|
44 |
07B0028 |
GB894.1-86 |
挡圈 |
Ring |
55 |
2 |
|
45 |
41A0034 |
|
太阳轮 |
Sun Gear |
|
2 |
|
46 |
41A0036 |
|
行星齿轮 |
Planet Gear |
|
6 |
|
47 |
53A0064 |
ZL40B.2-16 |
盖 |
Cover |
|
2 |
|
48 |
20B0026 |
GB308-84 |
钢球 |
Ball |
9.525 |
6 |
|
49 |
20B0022 |
GB309-84 |
滚针 |
Needle |
P5×50 |
186 |
|
50 |
76A0020 |
ZL40B.2-12A |
垫片 |
Spacer |
|
12 |
|
51 |
60A0121 |
ZL40B.2-13 |
行星齿轮轴 |
Planet Gear Shaft |
|
6 |
|
52 |
70A0017 |
ZL40B.2-10B |
行星轮架 |
Planet Carrier |
|
2 |
|
53 |
46A0004 |
|
内齿轮 |
Ring Gear |
|
2 |
|
54 |
01B0181 |
ZL50C.2-10A |
轮辋螺栓 |
Bolt |
|
20 |
|
55 |
03B0201 |
120-3103018 |
轮辋螺母 |
Nut |
|
20 |
|
56 |
03B0150 |
GB6171-86 |
螺母 |
Nut |
M20×1.5-8-Zn.D |
20 |
|
57 |
06B0019 |
GB93-87 |
垫圈 |
Washer |
20 |
20 |
|
58 |
12B0093 |
ZL40B.2-9 |
O形密封圈 |
“O” Ring |
450×5 |
2 |
|
59 |
70A0016 |
ZL40B.2-7 |
轮毂 |
Hub |
|
2 |
|
60 |
76A0019 |
ZL40B.2-6 |
卡环 |
Ring |
|
2 |
|
61 |
13B0220 |
BAUSL |
油封 |
Seal |
150×180×15 |
2 |
|
62 |
27A0052 |
ZL40B.2-20 |
防尘罩 |
Dust Cowl |
|
2 |
|
63 |
33A0003 |
ZL50C.2-3 |
透气管 |
Breather |
|
1 |
|
64 |
03B0035 |
GB6171-86 |
螺母 |
Nut |
M10×1-8-Zn.D |
1 | |
|
|
|
|
| |
|
|
|
|
