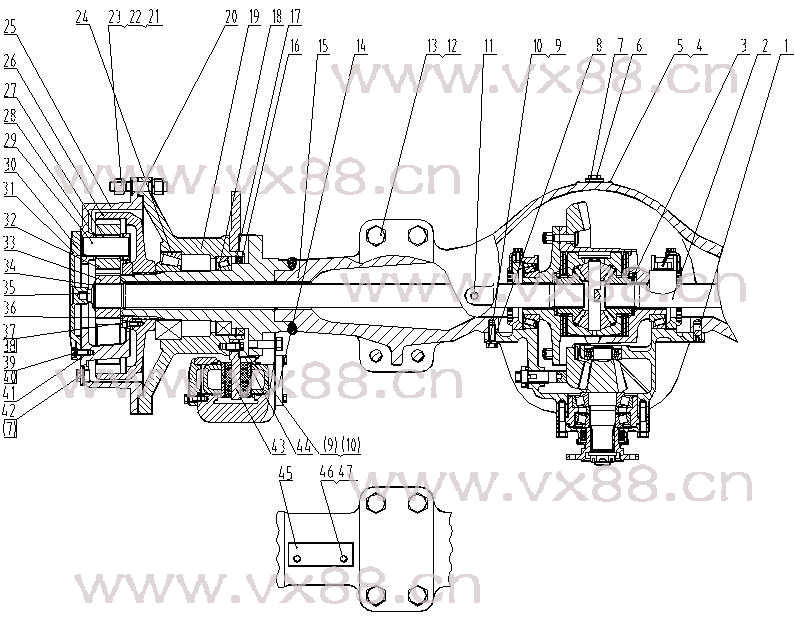

图文名称：前桥总成 01E0056
所属机型：CLG856
图文编号：488
物料编号：01E0056
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
60A0011 |
ZL50C.2-26 |
定位销 |
Locator |
|
2 |
|
2 |
62A0005 |
ZL50C.2-6 |
半轴 |
Half Shaft |
|
2 |
|
3 |
41C0047 |
|
前桥主传动 |
Front Axle Main Transmission |
|
1 |
|
4 |
74A0244 |
|
桥铭牌 |
Film |
|
1 |
|
5 |
09B0002 |
GB827-86 |
铆钉 |
Rivet |
2×5 |
4 |
|
6 |
03B0311 |
|
螺塞 |
Plug Screw |
|
1 |
|
7 |
06B0055 |
JB982-77 |
组合密封垫圈 |
Seal Assembly |
27 |
4 |
|
8 |
81A0004 |
ZL50C.2-2 |
垫片 |
Spacer |
|
1 |
|
9 |
00B0273 |
GB5783-86 |
螺栓 |
Bolt |
M14×40-8.8-Zn.D |
54 |
|
10 |
06B0013 |
GB93-87 |
垫圈 |
Washer |
14 |
62 |
|
11 |
03B0406 |
|
通气塞 |
Breather |
Z1/8" |
1 |
|
12 |
01B0353 |
GB5785-86 |
螺栓 |
Bolt |
M24×2×260-10.9-Zn.D |
8 |
|
13 |
03B0200 |
CB082428-3 |
锁紧螺母 |
Lock Nut |
M24×2 |
8 |
|
14 |
45C0005 |
ZL50C.2.2A |
夹钳总成 |
Torque Plate Assembly |
|
4 |
|
15 |
24D0018 |
|
前桥壳体轮边支承 |
Support Shaft |
|
1 |
|
16 |
13B0220 |
BAUSL |
油封 |
Seal |
150×180×15 |
2 |
|
17 |
76A0002 |
ZL50C.2-7 |
卡环 |
Ring |
|
2 |
|
18 |
23B0009 |
GB/T297-94 |
圆锥滚子轴承 |
Row Tapered Roller Bearing |
32024 |
2 |
|
19 |
47A0001 |
ZL50C.2-9 |
轮毂 |
Hub |
|
2 |
|
20 |
12B0206 |
GB3452.1-92 |
O形密封圈 |
“O” Ring |
475×7 |
2 |
|
21 |
01B0181 |
ZL50C.2-10A |
轮辋螺栓 |
Bolt |
|
24 |
|
22 |
03B0150 |
GB6171-86 |
螺母 |
Nut |
M20×1.5-8-Zn.D |
48 |
|
23 |
06B0019 |
GB93-87 |
垫圈 |
Washer |
20 |
48 |
|
24 |
23B0010 |
GB/T297-94 |
圆锥滚子轴承32221 |
Row Tapered Roller Bearing |
105×190×53 |
2 |
|
25 |
72A0004 |
ZL50C.2-11 |
行星轮架 |
Planet Carrier |
|
2 |
|
26 |
41A0001 |
ZL50C.2-12A |
内齿轮 |
Ring Gear |
|
2 |
|
27 |
20B0001 |
ZL50C.2-29 |
滚针 |
Needle |
|
168 |
|
28 |
20A0011 |
ZL50C.2-15A |
垫片 |
Spacer |
|
12 |
|
29 |
60A0007 |
ZL50C.2-17 |
行星齿轮轴 |
Planet Gear Shaft |
|
6 |
|
30 |
20B0026 |
GB308-84 |
钢球 |
Ball |
9.525 |
6 |
|
31 |
53A0009 |
ZL50C.2-21 |
盖 |
Cover |
|
2 |
|
32 |
41A0002 |
ZL50C.2-18 |
行星齿轮 |
Planet Gear |
|
6 |
|
33 |
41A0003 |
ZL50C.2-19 |
太阳轮 |
Sun Gear |
|
2 |
|
34 |
07B0013 |
GB894.1-86 |
挡圈 |
Ring |
58 |
2 |
|
35 |
61A0019 |
ZL50C.2-20 |
轴 |
Shaft |
|
2 |
|
36 |
03B0010 |
ZL50C.2-22 |
圆螺母 |
Circular Nut |
|
2 |
|
37 |
04B0022 |
GB70-85 |
螺钉 |
Screw |
M10×25-8.8-氧化 |
4 |
|
38 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
70 |
|
39 |
00B0017 |
GB5783-86 |
螺栓 |
Bolt |
M12×30-8.8-Zn.D |
12 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
40 |
06B0008 |
GB93-87 |
垫圈 |
Washer |
12 |
12 |
|
41 |
81A0006 |
ZL50C.2-23 |
密封垫 |
Gasket |
|
2 |
|
42 |
03B0212 |
|
螺塞 |
Plug Screw |
|
3 |
|
43 |
56A0007 |
ZL50C.2-24 |
制动盘 |
Brake Disk |
|
2 |
|
44 |
53A0008 |
ZL50C.2-8 |
防尘罩 |
Dust Cowl |
|
2 |
|
45 |
20A0014 |
ZL50C.2-27 |
挡板 |
Plate |
|
2 |
|
46 |
00B0007 |
GB5783-86 |
螺栓 |
Bolt |
M8×16-8.8-Zn.D |
4 |
|
47 |
06B0005 |
GB97.1-85 |
垫圈 |
Washer |
8-140HV-Zn.D |
4 | |
|
|
|
|
| |
|
|
|
|
